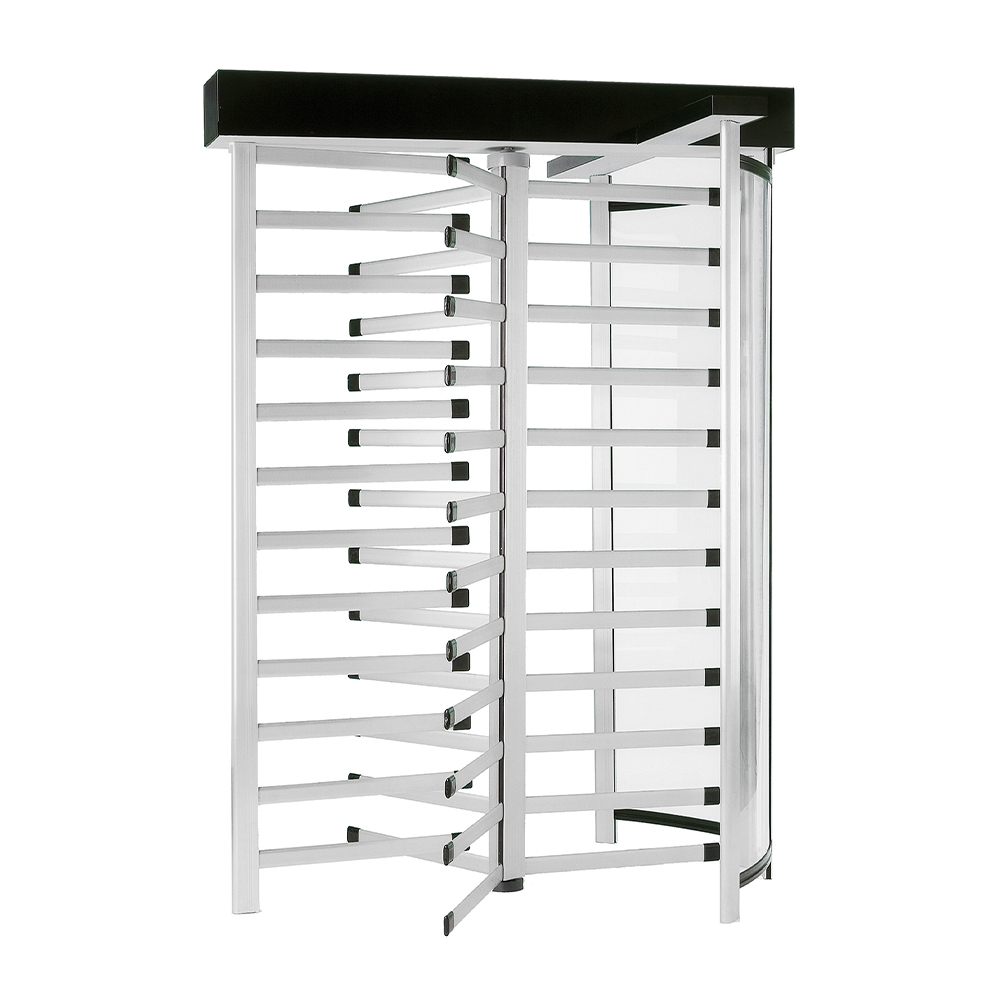

Tiffany T80 Series Single Full Height Turnstiles
To meet all of your security and control requirements, we feature the Tiffany T80 Portal Series single turnstile units which can be configured as stand-alone units or as part of an integrated system with state-of-the-art technology and features. Use these for exit/entry locations in amusement parks, stadiums, or any facility you like. One of our largest turnstiles, these are popular options for industrial settings or as an exit point for a public building. Additionally, this model has a Security Door Option (T36) available.
Controls:
- Manual Both Ways
- Manual One Way / No Passage in Opposite Direction
- Electronic One Way / Free Exit
- Electronic One Way / No Exit
- Electronic Both Ways
Available Finishes:
- Anodized Aluminum (Standard)
- Dark Bronze
- Other colors can be quoted upon request
Application/Use:
- Interior/Exterior
- Locate where you may or may not have a guard present
- Can function as stand-alone units or as part of an integrated system
- Nearly universal integration to any number of access control systems
- Three-vane, tamper resistant and weather resistant
- These units offer a modern, open feel while providing a secure, full height portal
- They will perform the same way a traditional full height turnstile does with a less imposing look
- Can be interfaced with optional LCD counters, computer attendance systems, card readers, push button and wireless remote controls
Tiffany T80 Series Single Full-Height Turnstile Downloadables
Tiffany T80 Single Turnstile Specifications
Materials & Hardware:
- Various 6061 & 6063 extruded aluminum
- Major components pre-assembled with concealed rods and spring pins
- Barrier and yokes secured with 3/4" rod epoxied into concrete
- Rotor pivots on a sealed load runner bearing, secured with high strength plastic coupling anchored into concrete
- Minimum of 4” needed for removal of cover
Electrical Specifications:
- Input Voltage: 100-240 VAC
- Input Current: 1.3 - .55 A
- Frequency: 50/60 Hz
- Storage Temperature: -40 to 158°F
- Operating Temperature: -4 to 131°F
- Operating Voltage: 24VDC
- Operating Current: 1.2 A (typical)
Dimensions:
- Ovaline Arms: 1/2" x 2" x 24"
- Exterior Height: 91" (2311.4mm)
- Interior Height: 84" (2133.6mm)
- Width: 66.250" (1682.7mm)
- Pedestrian Clearance: 27.750" (704.8mm)
6500 Series Control Head Specifications:
- Auto-indexing (self-centering) with adjustable hydraulic shock suppression
- Hardened tool steel locking bars, cam and roller assemblies
- Permanently lubricated bearings
- Your choice of manual or electronic control on both directions
- Nearly universal integration to any number of access control systems
- Your choice on each electronic direction of locking or unlocking on power failure
Certifications:
- Austenitic stainless steel:ASTM A240, A249, A276
- Hot rolled steel: AISI C-1020, AISI C-1018
- Hot dipped galvanizing: ASTM A-143, ASTM A-153-80
- All fasteners provided meet IFI ANSI/ASME Fastener Standards
- American Welding Society (AWS) Standard D 1.1
- UL 294
- UL 325
- UL Subject 2593
- CAN/ULC S319 & CSA C22.2#247
- ISO 90010:2015
Additional Add-Ons & Options for the Tiffany T80 Series (Single):
- Home Position Switch: Additional limit switch provides a SPDT output while at home for security integration
- Proximity Sensor Upgrade: Replaces limit switches with proximity sensors for part longevity
- Bidirectional Key Override Set for Manual or Electric 2-Way Units : Allows the turnstile to be locked independently in each direction with a turn of a key
- Card Reader Mounting Plates (1 per electronic direction): mounting most standard card readers
- Hinged or Split Covers
- Cold Weather Package for tight clearance installations: Includes 250 Watt Thermostat, Controlled Heater, and Insulated Mainframe
- Single or Double Push Button (installed on site)
- One Channel 900 MHz Wireless Receiver
- One or Two Button Wireless Key Fob Transmitter
