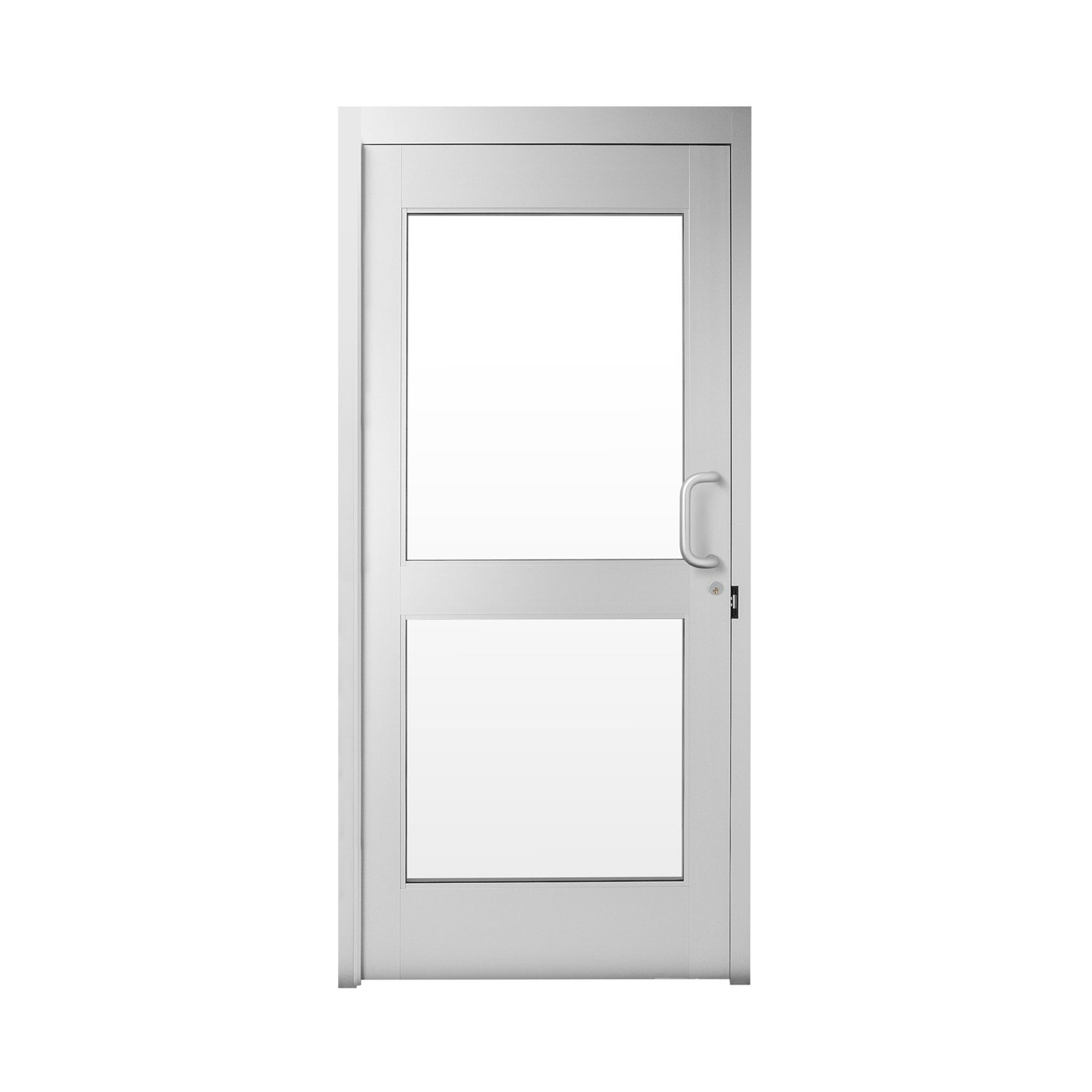

T36-ADA Security Doors for T80, P90, and RD70 Turnstile Models
The T36-ADA is a solution for projects requiring an aesthetically pleasing interior security door. This self-closing unit provides wheelchair accessible 36" passage width (overall width 40"). It is a "heavy-duty" stile and rail door that can withstand high traffic and abuse. Its low voltage strike lock can be used mechanically or electronically depending on your needs. The T36-ADA is normally paired with the T80-Single, T80-Tandem, P60 or RD70 aluminum-polycarbonate turnstile portals.
Application/Use:
- Interior/Exterior
- Self-closing heavy duty swing door provides wheelchair accessible 36" passage
- Overall passage width of 40"
- Designed for secure operation with aesthetics in mind
- Door can also be unlocked with no power by configuring the strike to fail lock by using a key
- Door automatically swings closed with standard hydraulic door closer
- Continuous Hinge
- Minimally exposed hardware
T36-ADA Security Door Downloadables:
T36 Data Sheet T36 Manual T36 Specification Sheet 6500 Control Head ManualT36-ADA Security Door Specifications & Add-Ons:
Standard Hardware:
- Hydraulic Closer: Norton 9300 Series with aluminum finish
- Electronic Strike: Adams Rite 7100 Series, 24VDC
- Deadlatch: Adams Rite 4510 Series with 1.5" Backset
- Cylinder: Schlage C keyway (SFIC available)
Materials & Finishes:
- Heavy duty anodized aluminum extrusions
- 1/4" tempered glass
- Door handle
- Finish: Standard anodizing finish is clear. Also available in dark bronze
HS336-ADA Security Door Dimensions:
- Size of opening (pedestrian clearance): 36" (914.4mm)
- Interior Height: 86.5" (2197.1mm)
- Exterior Height: 91" (2311.4mm)
- Overall Width: 40" (1016mm)
Certifications
- Austenitic stainless steel:ASTM A240, A249, A276
- Hot rolled steel: AISI C-1020, AISI C-1018
- Hot dipped galvanizing: ASTM A-143, ASTM A-153-80
- All fasteners provided meet IFI ANSI/ASME Fastener Standards
- American Welding Society (AWS) Standard D 1.1
- UL 294
- UL 325
- UL Subject 2593
- CAN/ULC S319 & CSA C22.2#247
- ISO 90010:2015
Additional Add-Ons & Options:
- Panic Bar
- Signal Monitoring Switch for Panic Bar Package: Adds a SPDT switch to mirror panic bar status with wire transfer kit to feed wires from door to frame
- Panic Bar with Reach Prevention Mesh & Battery Powered Alarm
- Panic Bar with Battery Powered Alarm
- Metal Detection Portal: HI-PE walk-through multizone metal detector integrated into turnstile with a remote relay unit that locks the turnstile upon alarm to disallow entry
- Magnetic Lock: Can replace the strike lock if requested
- 24 Volt Power Supply (one per direction): If being used electronically and not purchased with a turnstile)
- Single or Double Push Button(installed on site)
- Motorized Door Opener
- Request to Exit ADA Placard Button with Plastic Surface Mount Enclosure: Rectangular or round
- 24 Volt Power Supply (if being used electronically and not purchased with a turnstile)
- One or Two Button Wireless Key Fob Transmitter
- One Channel 900 MHz Wireless Receiver
