Tiffany P60 Series Single Full Height Turnstiles

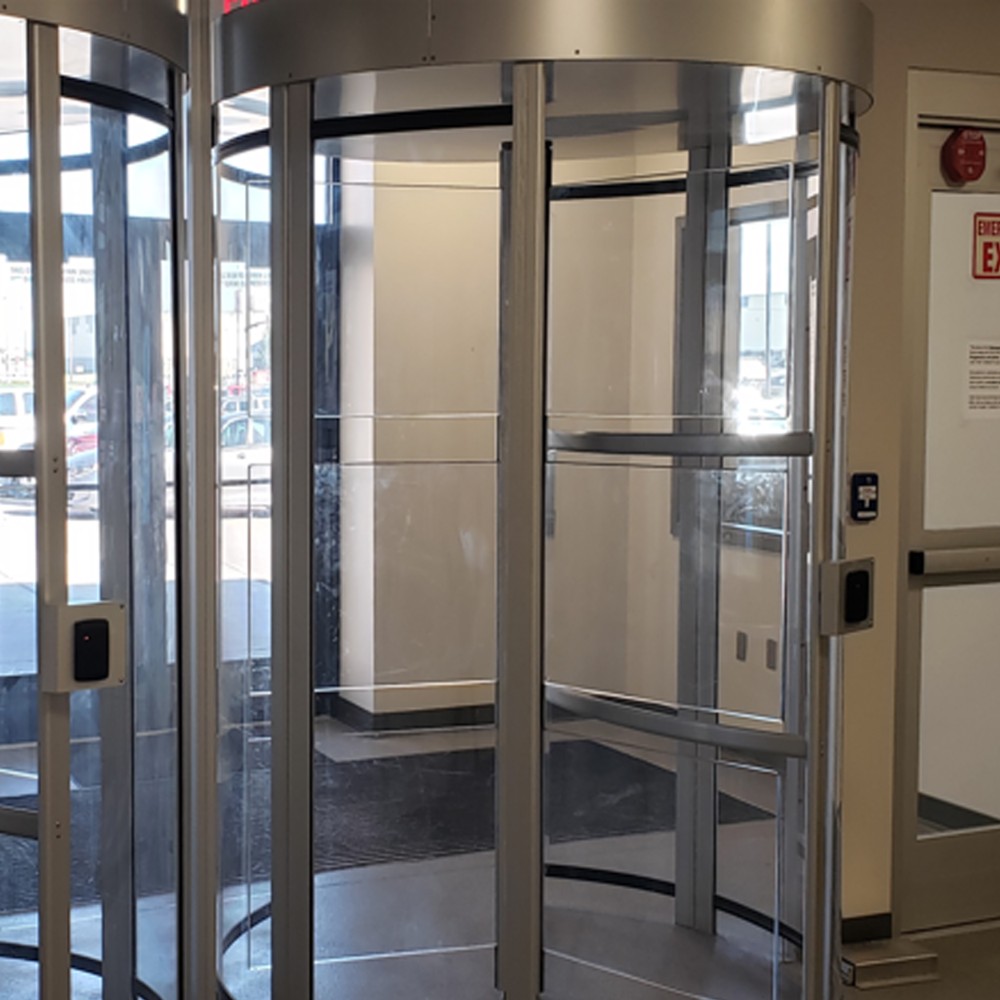

To meet all of your security and control requirements, we feature the Tiffany P60 Portal Series which is a three-vane turnstile with an anodized aluminum finish and is shipped preconfigured to your security needs. It is constructed with a heavy-duty overhead canopy, extruded aluminum columns, scratch-resistant polycarbonate cage panels, and 3/4" scratch-resistant laminate panels for a more modern and open look. Additionally, this model has a Security Door Option (T36) available.
Controls:
- Manual Both Ways
- Manual One Way / No Passage in Opposite Direction
- Electronic One Way / Free Exit
- Electronic One Way / No Exit
- Electronic Both Ways
Available Finishes:
- Anodized Aluminum (Standard)

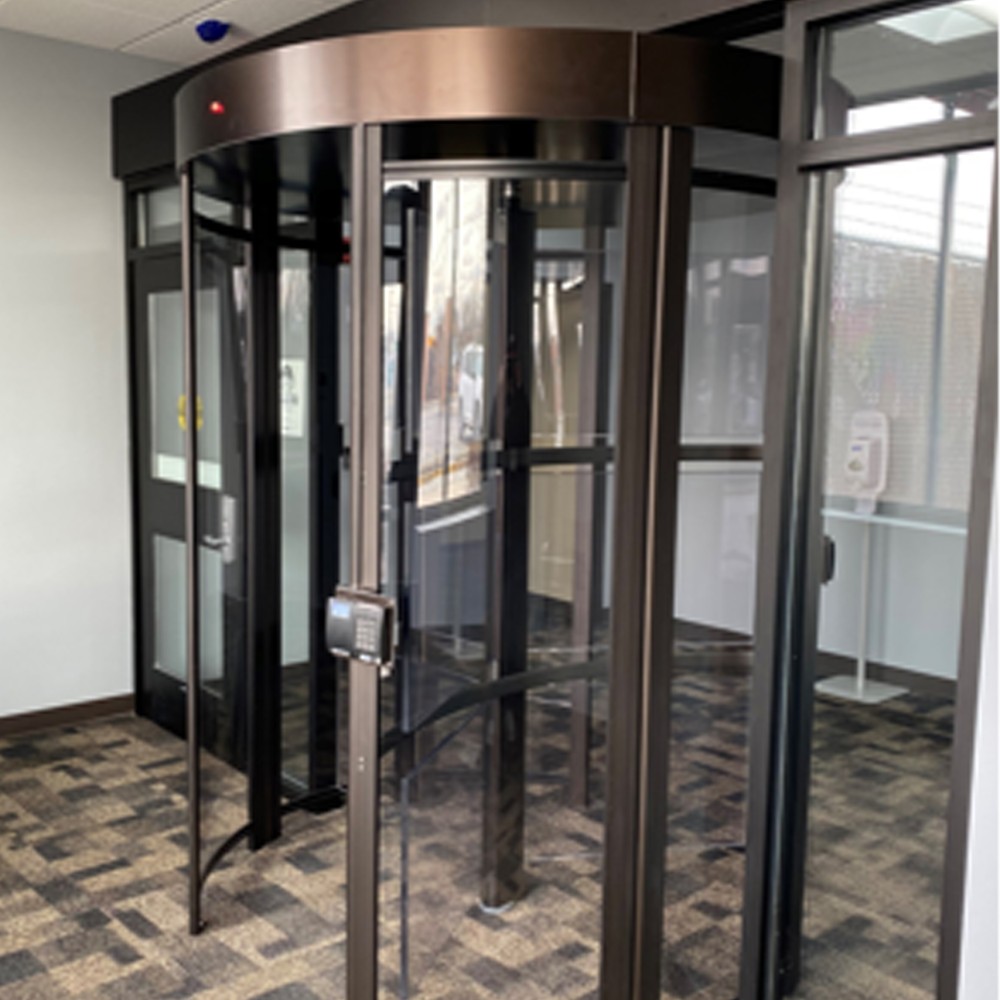

- Dark Bronze
- Other colors can be quoted upon request
Application/Use:
- Interior
- Nearly universal integration to any number of access control systems
- Three-vane, tamper resistant and weather resistant
- These units offer a modern, open feel while providing a secure, full height portal
- They will perform the same way a traditional full height turnstile does with a less imposing look
- Can be interfaced with optional LCD counters, computer attendance systems, card readers, push button and wireless remote controls
Assembly & Hardware:
- Major lower components pre-assembled with concealed spring pins and solid rods
- All exposed fasteners are stainless steel
- Canopy & outer cage panels secured to concrete with 3/4" thread rods, epoxied into concrete
- Minimum of 6" needed above canopy in order for canopy to be removed
- Rotor pivots on a sealed load runner bearing, secured with high strength plastic coupling anchored into concrete
Tiffany P60 Single Turnstile Specifications
Materials & Hardware:
- Various 6061 & 6063 extruded aluminum
- 3/16" scratch-resistant polycarbonate
- 3/4" scratch-resistant laminate
- 7 & 11 gauge steel (mainframe/canopy)
- Anodized aluminum sheet, canopy wrap
Electrical Specifications:
- Input Voltage: 100-240 VAC
- Input Current: 1.3 - .55 A
- Frequency: 50/60 Hz
- Storage Temperature: -40 to 158°F
- Operating Temperature: -4 to 131°F
- Operating Voltage: 24VDC
- Operating Current: 1.2 A (typical)
Dimensions:
- Arm Panels: 31” Long / 21.25” High / .75" Thick
- Exterior Height: 91" (2311.4mm)
- Interior Height: 84" (2133.6mm)
- Diameter: 72.284" (1836mm)
- Pedestrian Clearance: 30" (762mm)
6500 Series Control Head Specifications:
- Auto-indexing (self-centering) with adjustable hydraulic shock suppression
- Hardened tool steel locking bars, cam and roller assemblies
- Permanently lubricated bearings
- Your choice of manual or electronic control on both directions
- Nearly universal integration to any number of access control systems
- Your choice on each electronic direction of locking or unlocking on power failure
Certifications:
- Austenitic stainless steel:ASTM A240, A249, A276
- Hot rolled steel: AISI C-1020, AISI C-1018
- Hot dipped galvanizing: ASTM A-143, ASTM A-153-80
- All fasteners provided meet IFI ANSI/ASME Fastener Standards
- American Welding Society (AWS) Standard D 1.1
- UL 294
- UL 325
- UL Subject 2593
- CAN/ULC S319 & CSA C22.2#247
- ISO 90010:2015
Additional Add-Ons & Options for the Tiffany P60 Series (Single):
- Home Position Switch: Additional limit switch provides a SPDT output while at home for security integration
- Proximity Sensor Upgrade: Replaces limit switches with proximity sensors for part longevity
- Bidirectional Key Override Set for Manual or Electric 2-Way Units : Allows the turnstile to be locked independently in each direction with a turn of a key
- Card Reader Mounting Plates (1 per electronic direction): For mounting most standard card readers
- Passageway Overhead Low Voltage Lighting
- Battery Back-Up: 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger
- DSI Entry Sentry Optical Anti-Tailgating Array: Adds an extra level of security by locking the unit and sounding an alarm in the event of a second person following another without presenting credentials
- Metal Detection Portal: HI-PE walk-through multizone metal detector integrated into turnstile with a remote relay unit that locks the turnstile upon alarm to disallow entry
- Single or Double Push Button (installed on site)
- One Channel 900 MHz Wireless Receiver
- One or Two Button Wireless Key Fob Transmitter
