PassThru Waist High Turnstiles

The PassThru Series is built for high-traffic locations that need an open, bridge-style cabinet rather than a bulky enclosure. Constructed from heavy 14-gauge, 300-series satin stainless steel and driven by the 6500 Series Control Head with auto-indexing and shock suppression, it delivers years of reliable service indoors or out. The 18-inch tripod arm is the longest of any waist-high model in the lineup, giving pedestrians a little extra room at the gate. This turnstile is built for:

• Interior or exterior use - the all-stainless PTS and portable PTS-P models handle both environments
• High-traffic, design-conscious sites - arenas, recreation centers, corporate campuses, and public buildings where sight lines matter
• Maximum passage area - 18" arm provides the widest standard opening in the waist-high lineup
• Integrated security - interfaces with LCD counters, computer attendance systems, card readers, push buttons, and wireless remote controls
• System flexibility - nearly universal integration to any number of access control systems

How Our Options Work

The PassThru is configured around the 6500 Series Control Head. You choose manual rotation for simple traffic metering, or electronic control for credential-based entry and exit. You can set each electronic direction independently to fail-lock or fail-open on power loss. The PTS model can also be fitted with a coin/token acceptor or ticket drop box, turning the turnstile into a self-serve revenue gate. Optional card-reader mounting plates can be recessed into the lid on the PTR and PTZ models.

Available Models

Model	Height	Width	Depth	Arm Length	Top	Environment

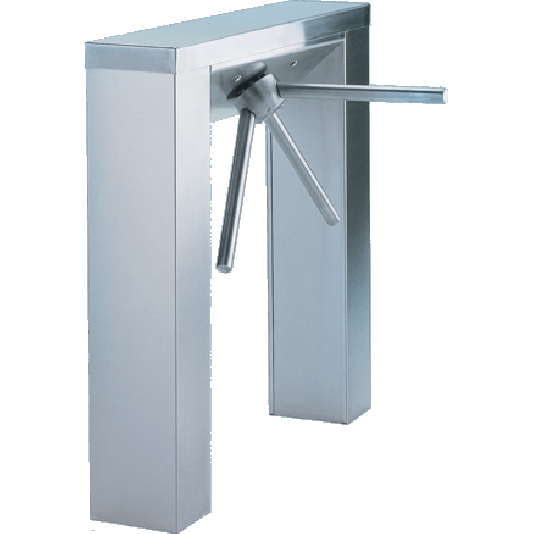

PTS (Stainless)	38.25"	26.625"	36.625"	18"	Stainless Steel	Interior/Exterior

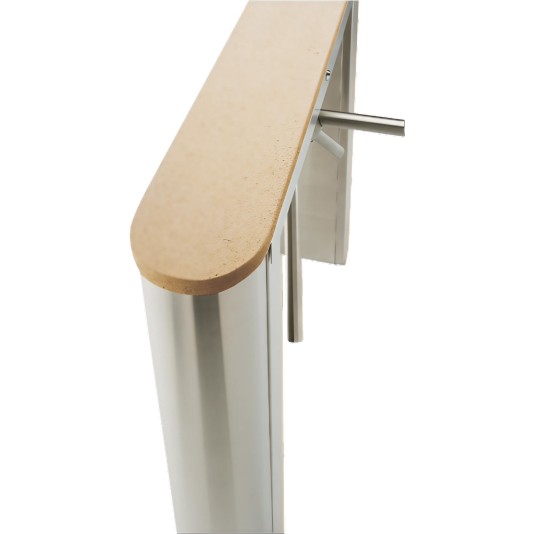

PTR (Round)	38.25"	26.625"	36.625"	18"	Solid Surface/Wood	Interior

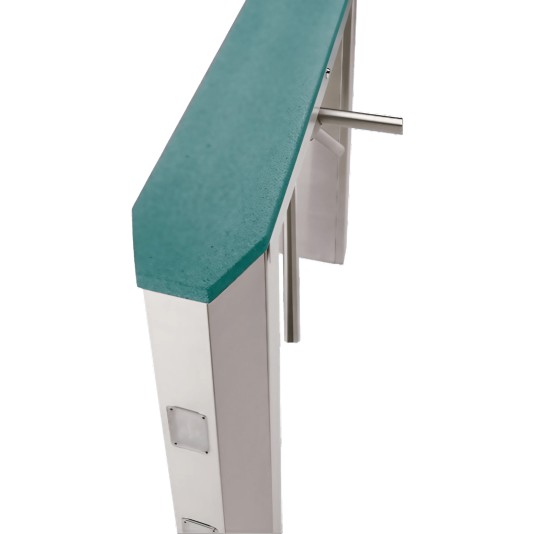

PTZ (Trapezoid)	38.25"	26.625"	36.625"	18"	Solid Surface/Wood	Interior

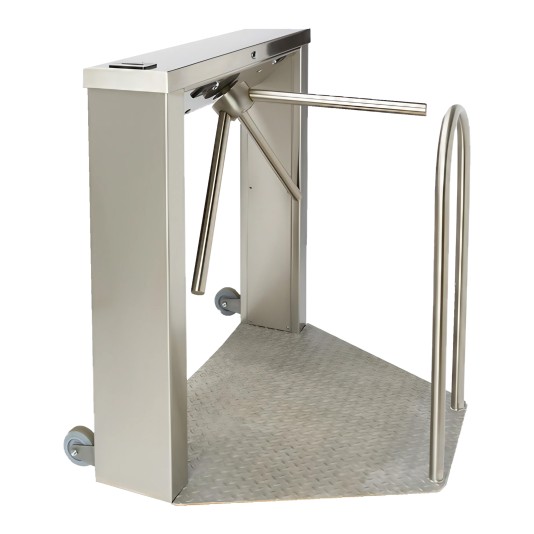

PTS-P (Portable)	38.25"	26.625"	36.625"	18"	Stainless Steel	Interior/Exterior

Specifications

• Type: Waist-high tripod turnstile with open bridge-style cabinet
• Cabinet Material: Heavy 14-gauge, 300-series stainless steel/No. 4 satin finish
• Top Material: Stainless steel on PTS and PTS-P; Solid Surface (similar to Corian) or wood laminate on PTR and PTZ
• Arm Material: 1 5/16" diameter (12-gauge) stainless steel; 4 1/2" o.d. stainless steel hub
• Arm Length: 18" (longest standard waist-high arm)
• Control Head: 6500 Series with auto-indexing and adjustable hydraulic shock suppression
• Control Types: Manual or electronic operation available
• Fail-Safe Configuration: Each electronic direction configurable as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss
• Input Voltage: 100-240 VAC
• Input Current: 1.3 - 0.55 A
• Frequency: 50/60 Hz
• Operating Voltage: 24 VDC
• Operating Current: 1.2 A (typical)
• Weight (PTS-P): 215 lbs
• Shipping Dimensions (PTS-P): 39" x 22" x 42"

Production Options & Add-Ons

Review and select these items before calling to order. Each choice affects pricing, lead time, and final configuration.

Control Options

Choose the traffic flow pattern that matches your security plan:

• Manual Both Ways - free rotation in both directions
• Manual One Way/No Passage in Opposite Direction - allows rotation in one direction only
• Electronic One Way/Free Exit - entry controlled, exit free
• Electronic One Way/No Exit - entry controlled, exit blocked
• Electronic Both Ways - credential-controlled in both directions
• Each electronic direction can be configured as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss

Finish Options

• Cabinet: 304 Stainless Steel/No. 4 Satin Finish (heavy 14-gauge)
• Top: Stainless steel on PTS and PTS-P; Solid Surface on PTR and PTZ
• Arm: Stainless steel
• 316 Stainless Steel Upgrade - enhanced corrosion resistance; available on large quantity orders only

Top Color Options

The PTS and PTS-P tops are standard stainless steel. For PTR and PTZ models, you can upgrade the top to a furniture-grade finish:

• Solid Surface - similar to Corian (standard on PTR/PTZ)
• Wood Laminate - warm, natural look for interior lobbies
• Corian branded material - available upon request

Additional Options

• Home Position Switch - additional limit switch provides SPDT output while at home for security integration
• Proximity Sensor Upgrade - replaces limit switches with proximity sensors for part longevity
• Bidirectional Key Override Set - allows the turnstile to be locked independently in each direction with a key
• Daylight Visible Indicator Lights - tri-color (red/green/yellow) indicator visible in bright light
• Rubber Arm Guards - protective covers for tripod arms (tripod units only)
• Request to Exit ADA Placard Button - rectangular or round surface-mount enclosure
• 8 Digit Key Resettable LCD Counter - traffic counter with 7-year lithium battery
• Single or Double Push Button - installed on site for remote release
• One Channel 900 MHz Wireless Receiver - one per direction
• One or Two Button Wireless Key Fob Transmitter
• Battery Back-Up - 12 Ah battery kit with two 12 VDC batteries and 2 amp 24 VDC charger
• Coin/Token Acceptor - for self-serve paid entry (PTS model only)
• Ticket Drop Box - for ticket-based admission (PTS model only)
• Bill Acceptor - available upon request
• Card Reader Mounting - recessed into the lid, up to two readers (PTR and PTZ models only)
• Steel Backplate - added mounting plate for post or wall attachment
• External Power Receptacle
• 316 Stainless Steel Upgrade - large quantity orders only
