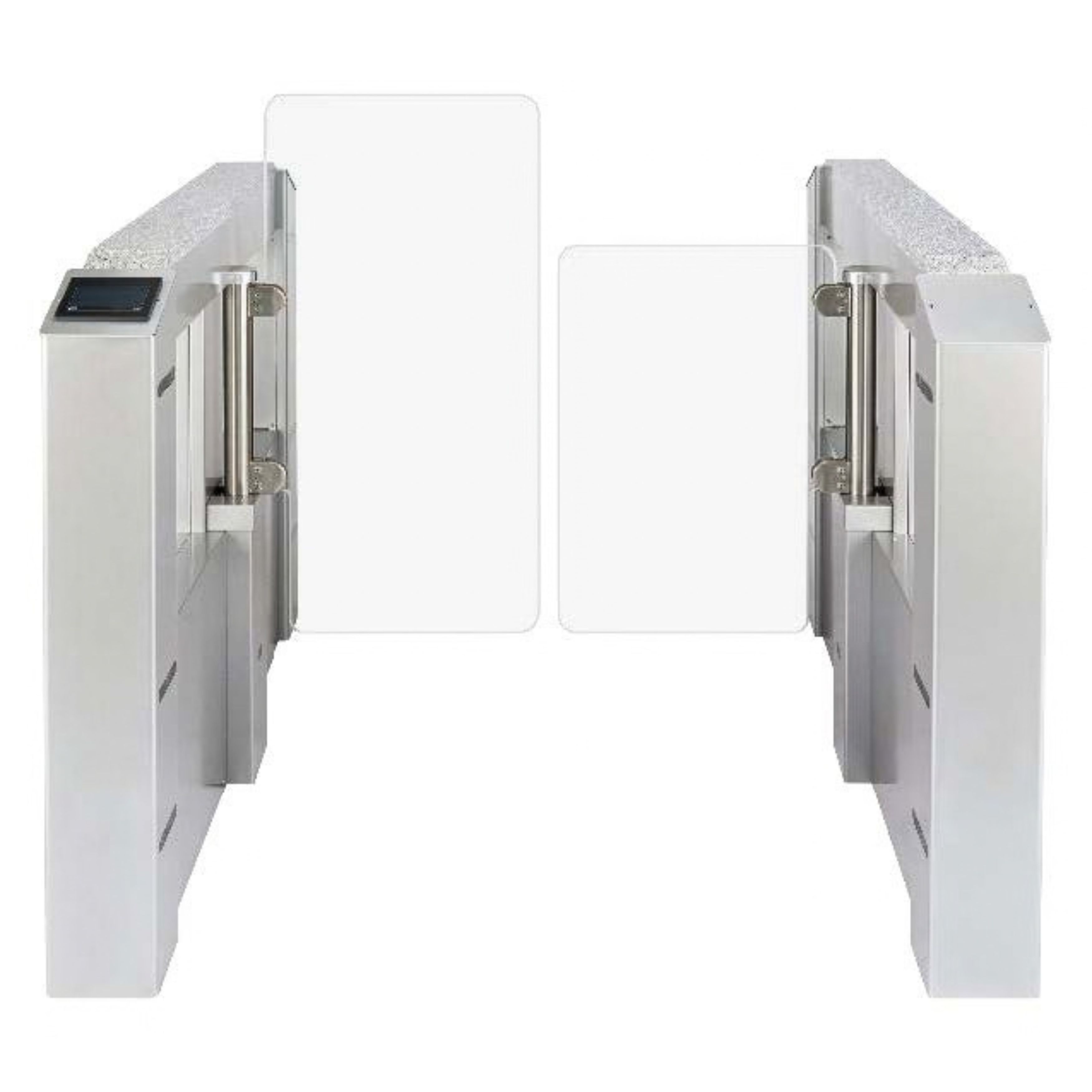

In-Stile 9900 Waist High Optical Barrier Turnstiles

The In-Stile 9900 is Controlled Access's most versatile barrier optical turnstile. It merges sleek, modern aesthetics with reliable optical sensor technology to secure interior entry points without overwhelming the space. Because each unit is highly customizable, architects and designers can specify cabinet colors, panel materials, and passage widths that match existing décor décorrporate branding.

• Interior environments - engineered for office towers, government buildings, and cultural institutions
• Prestige settings - banks, office lobbies, college student centers, embassies, and museums
• Tight dimensions - compact footprint ideal for spaces where floor area is limited
• Seamless integration - nearly universal integration with any number of access control systems

How Our Options Work

The In-Stile 9900 uses swinging optical barriers rather than traditional rotating arms. When access is granted, the panels swing open in sync; onboard optical sensors confirm a single authorized passage and then close the lane. Unauthorized acts such as tailgating or wrong-way entry trigger an audible alarm and a solid-state output that can feed into a larger security system. Fire-alarm inputs are standard, causing panels to swing open automatically for emergency egress.

Available Models

The 9900 series is configured by lane type and passage width. Choose the single-lane model for standard pedestrian traffic or the ADA-compliant lane for wheelchair and cart accessibility.

Model	Lane Type	Passage Width	Typical Use
IS9900-S	Single Arm/Standard	18"-22"	Standard pedestrian entry/exit
IS9900-ADA	ADA-Compliant	36"-42"	Wheelchair, cart, or equipment access

Specifications

Below are the standard construction and performance details for the EX300 series:

• Type: Waist-high barrier optical turnstile
• Frame: Inner framework - carbon steel; outer cabinet - powder-coated carbon steel or 304 stainless steel
• Barrier Panels: Tempered glass or polycarbonate, 36" or 46" tall
• Panel Customization: Laser-etched or frosted logos and artwork available
• Top Options: Solid surface or wood laminate
• Operation: Electronic motor-driven swing barrier with optical throughput sensing
• Passage Rate: Up to 30 people per minute
• Sensor Coverage: Lower-section optical sensors prevent crawling; dual-axis cabinet alignment with visible target
• Break-Away Mode: Engaged via settings with optional key or timed reset
• Input Voltage: 100 - 240 VAC
• Input Current: 4.26 - 2.23 A
• Frequency: 50/60 Hz
• Operating Voltage: 24 VDC
• Operating Current: Maximum 20 A
• Operating Temperature: -4°F to 131°F
• Storage Temperature: -40°F to 158°F
• Material Standards: Austenitic stainless steel ASTM A240, A249, A276; fasteners meet IFI ANSI/ASME standards; welding meets AWS Standard D 1.1

Production Options & Add-Ons

Review and select these items before calling to order. Each choice affects pricing, lead time, and final appearance.

Control Options

• Electronic One Way/Free Exit: Authorized entry with free egress
• Electronic Both Ways: Credential-controlled passage in both directions
• Configurable via logic controller for controlled passage in one or both directions, with free or no passage in the opposite direction

Finish Options

• Cabinet - 304 Stainless Steel/Satin Finish: Durable, brushed-metal look for professional interiors
• Cabinet - Powder Coated Carbon Steel: Broad color range to match branding or decor
• Barrier Panels: Tempered glass or polycarbonate in 36" or 46" heights

Top Color & Material Options

The top surface is highly visible. Standard solid surface and wood laminate selections include:

• Maui, Oat, Platinum, Gray Onyx, Mineral White, Onyx, Basalt, Terrazzo, Blue Crush, Blue Pebble, Black Quartz, Wood Laminate

Additional Options

These upgrades add accessibility, branding, or operational flexibility:

• Powder Coating of Cabinets Any Color - custom color matching available
• Barrier Height of Polycarbonate - choose 36" or 46" panel height
• Laser-Etched/Frosted Logo into Panels - customize glass or polycarbonate with company artwork
• Remote Control for Guard Stations - wireless or wired configuration for manual override
• Card Reader Mounting Plates - add entry-side and/or exit-side reader brackets
• ADA Push to Exit Placard Button - round or rectangular surface-mount enclosure
• ADA-Compliant Raceway Platform (Aluminum) - surface-mounted wireway for accessible lanes
• Portable Mounting Platform - eliminates floor drilling for temporary or leased installations

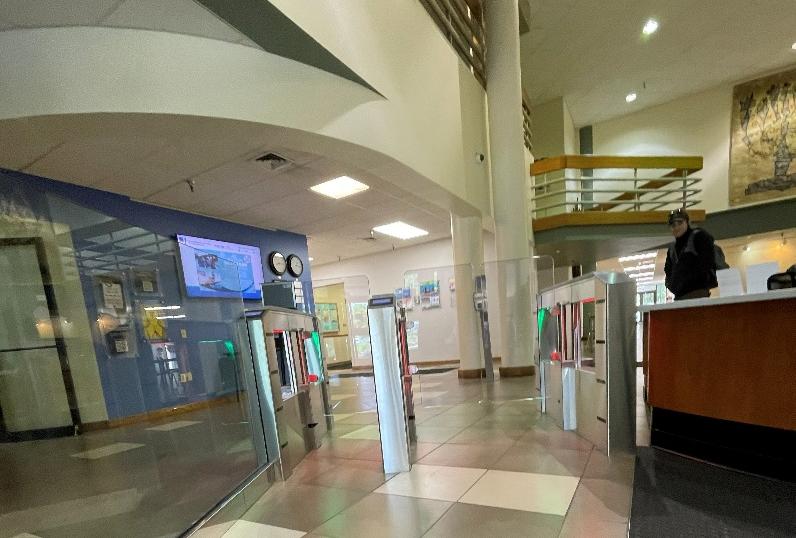

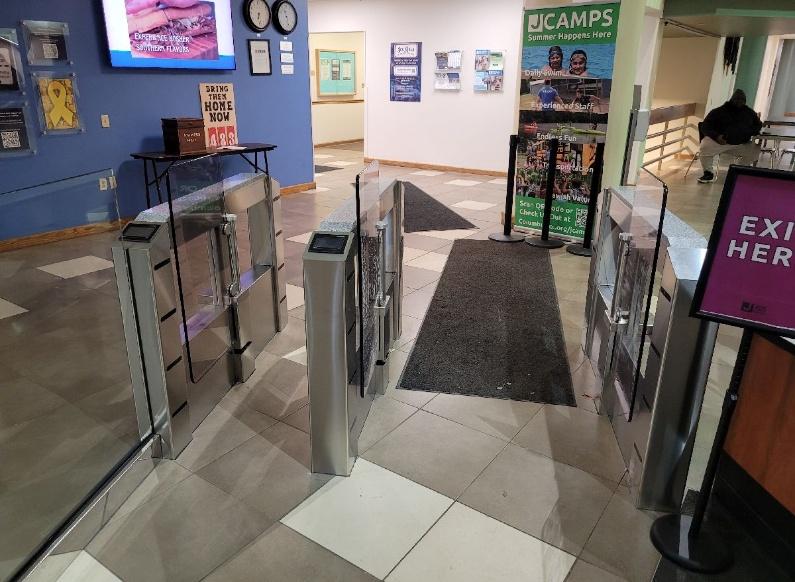

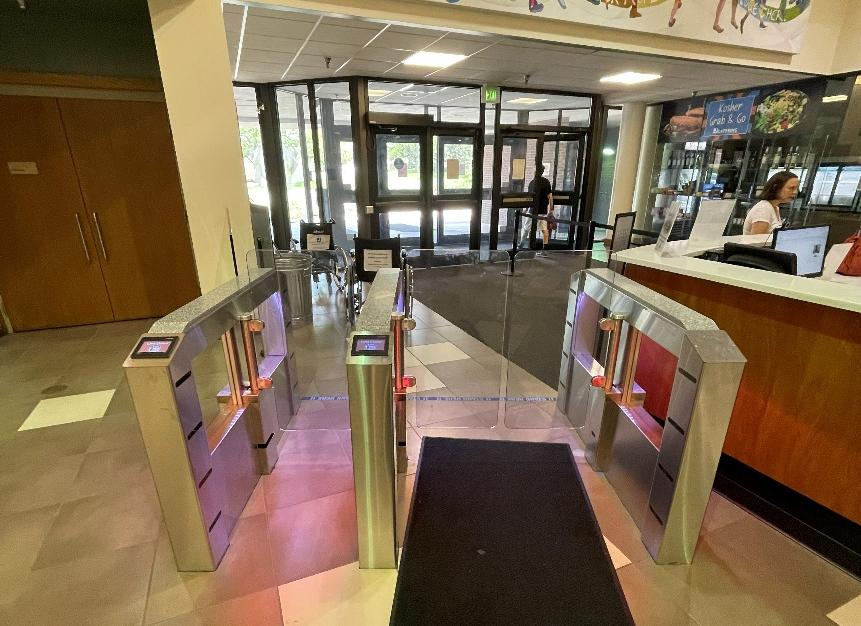

EX300 Waist High Optional Barrier Turnstile Installation Gallery
