Executive EX200 Waist High Turnstiles

The Executive EX200-Z is a high-traffic waist-high turnstile featuring faceted trapezoidal ends and a solid surface top. Crafted in 304 stainless steel, it delivers a crisp, architectural look that suits refined interiors without sacrificing throughput. A matching ADA swing gate is available to create a fully accessible entry array. This turnstile is built for:

• Interior environments - engineered for office lobbies, student centers, and public buildings
• Prestige settings - banks, corporate headquarters, college student centers, embassies, and museums
• Integrated security - interfaces with LCD counters, attendance systems, card readers, push-button and wireless remote controls
• System flexibility - integrates with existing access control or EntraPASS systems

How Our Options Work

The EX200-Z is built around the 6500 Series Control Head, configurable for manual or electronic operation. Manual models allow hand-pushed rotation in one or both directions. Electronic versions unlock the arm on valid credential presentation, with each direction independently set to fail-lock or fail-open on power loss. Executive ADA gates are restricted to electronic both-way, fail-open operation for safe egress.

Available Models

The EX200 series is offered in several configurations to match traffic patterns, accessibility requirements, and aesthetic preferences.

Model	Height	Width	Depth	Arm Length	Notes
EX200-Z (Trapezoid)	38.925"	36.750"	8.875"	15"	Standard tripod

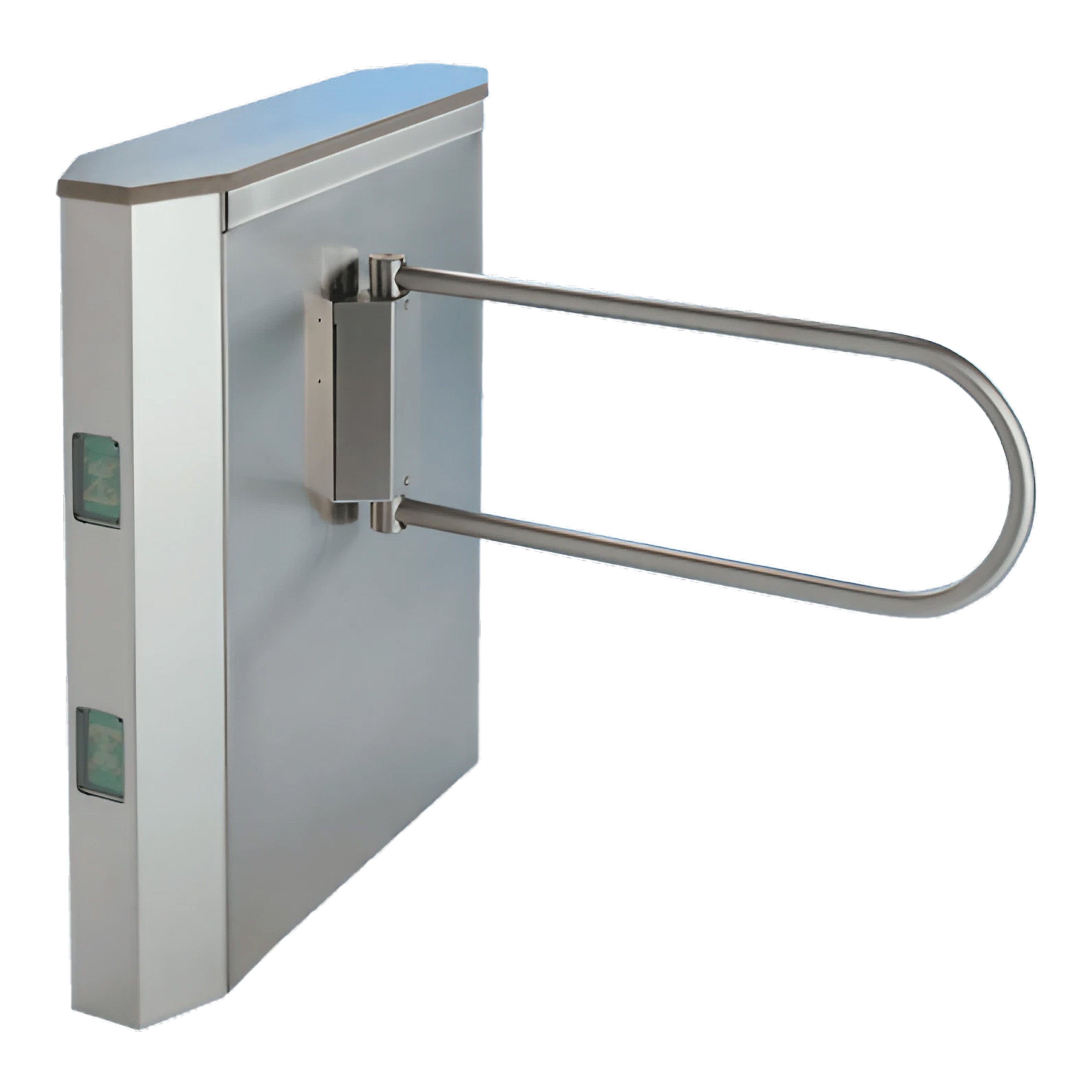

EX200-Z-ADA	38.925"	47.250"	8.875"	36"	ADA-compliant passage
EX200-Z-ADA-M***	38.925"	47.250"	8.875"	36"	Motorized; ETL rating does not apply
EX200-Z-BLK (Blank)	38.925"		8.875"	15"	Blank cabinet, no arm
EX200-Z-L (Lights)	38.925"	36.750"			Integrated tri-color LED board
EX200-Z-L-ADA	38.925"	47.250"			Lights + ADA
EX200-Z-L-ADA-M***	38.925"	47.250"			Lights + Motorized ADA; ETL rating does not apply

Specifications

• Type: Waist-high tripod turnstile with faceted trapezoidal ends
• Cabinet Material: 304 Stainless Steel/Satin Finish
• Top Material: Solid Surface (similar to Corian) or optional wood
• Arm Material: Stainless Steel
• Weight: 210 lbs
• Shipping Dimensions: 39" x 15" x 41"
• Control Types: Manual or electronic operation available
• Fail-Safe Configuration: Each electronic direction configurable as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss
• ADA Configuration: Available only as electronic both ways/fail open
• Application Environment: Interior use

Production Options & Add-Ons

Review and select these items before calling to order. Each choice affects pricing, lead time, and final configuration.

Control Options

Choose the traffic flow pattern that matches your security plan:

• Manual Both Ways - free rotation in both directions
• Manual One Way/No Passage in Opposite Direction - allows rotation in one direction only
• Electronic One Way/Free Exit - entry controlled, exit free
• Electronic One Way/No Exit - entry controlled, exit blocked
• Electronic Both Ways - credential-controlled in both directions
• Each electronically controlled direction can be configured as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss
• ADA models are available only as electronic both ways/fail open

Finish Options

• Cabinet: 304 Stainless Steel/Satin Finish (standard)
• Arm: Stainless Steel
• 316 Stainless Steel Upgrade - available on large quantity orderss

Optional top upgrades

• Stainless Steel Top
• Wood Top

Additional Options

These upgrades add security, branding, convenience, or operational flexibility:

• Home Position Switch - additional limit switch provides SPDT output while at home for security integration
• Proximity Sensor Upgrade - replaces limit switches with proximity sensors for extended part longevity
• Bidirectional Key Override Set - allows the turnstile to be locked independently in each direction with a key (manual or electric 2-way units; on Executive ADA Gates, available only as electronic 2-way fail open)
• Tri-Color LED Light Board - integrated LED indicator built into the cabinet top (Executive Series models only; included on EX200-Z-L variants)
• Daylight Visible Indicator Lights - tri-color (red/green/yellow) indicator visible in bright light; most models use red/green
• Flush Mount Indicator Lights - R/G/Y low-profile variant
• Request to Exit ADA Placard Button - surface-mount button in rectangular or round enclosure
• Custom Arm Lengths - up to 40" for ADA models only
• Lexan Arms - clear polycarbonate arms for ADA models (FastPass and Executive Series ADA models only)
• Corian Top - upgrade from standard solid surface to Corian branded material (Executive Series models only)
• 8 Digit Key Resettable LCD Counter - traffic counter with 7-year lithium battery
• Single or Double Push Button - installed on site for remote release
• One Channel 900 MHz Wireless Receiver - one per direction
• One or Two Button Wireless Key Fob Transmitter
• Battery Backup - 12 Ah battery kit with two 12 VDC batteries and 2 amp 24 VDC charger
• Variable Speed Self-Opening Motorized Arm - motorized arm with safety clutch to prevent injury
• External Power Receptacle
• Raceway Platform (Aluminum) - per lane
• Wave to Exit Sensor
• Card Reader Mounting - recessed into lid, per lid (up to two readers)
• 316 Stainless Steel Upgrade - enhanced corrosion resistance (large quantity orders only)

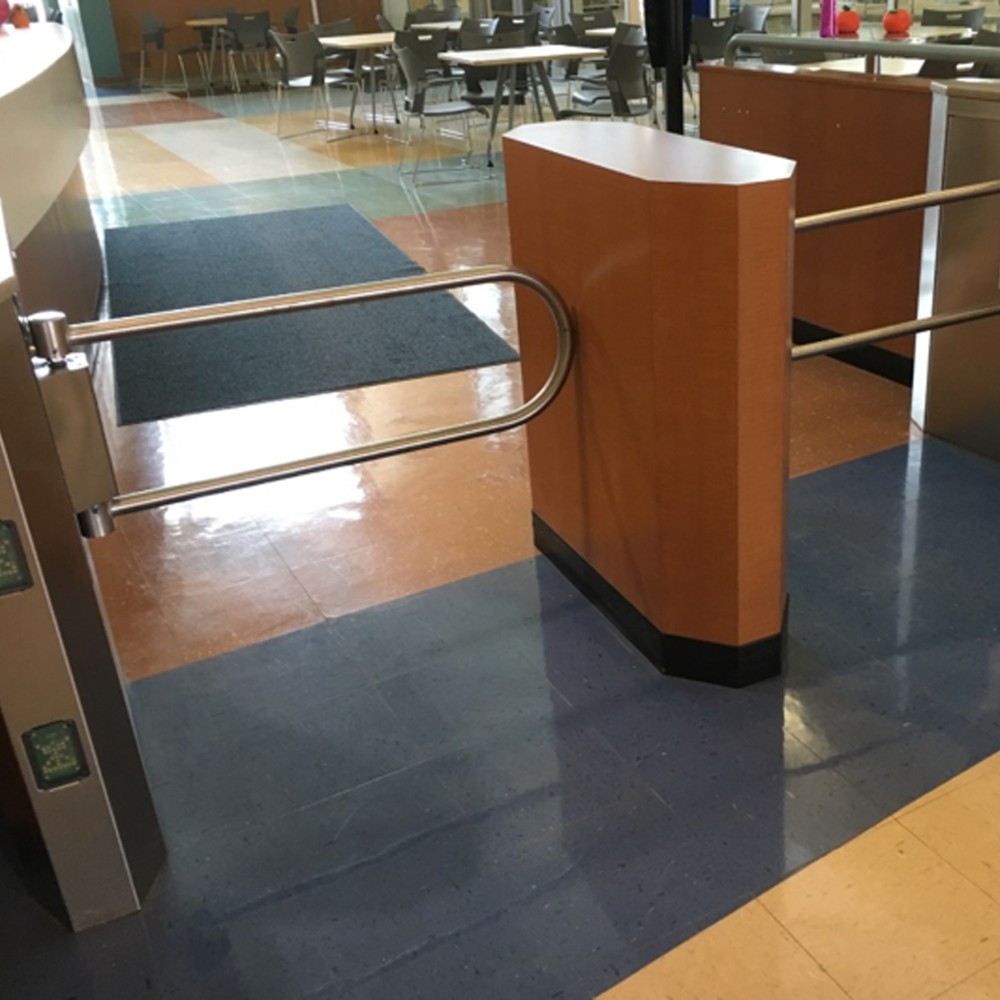

Executive EX200 Waist High Turnstile Installation Gallery

If you have any further questions, please reach out to our representatives. They are happy to help in any way they can!
