Executive EX100 Waist High Turnstiles

The Executive EX100 pairs a satin-finish stainless steel cabinet with a solid surface top to create a refined, professional look at lobby entry points. Designed for prestige interiors, this waist-high turnstile handles moderate security traffic with quiet mechanical reliability while complementing high-end architectural finishes.

• Interior environments - engineered for indoor office lobbies, student centers, and public buildings
• Prestige settings - banks, corporate headquarters, college student centers, embassies, and museums
• Integrated security - can be interfaced with optional LCD counters, computer attendance systems, card readers, push button and wireless remote controls
• System flexibility - nearly universal integration to any number of access control systems

How Our Options Work

The EX100 is configured around your choice of manual or electronic control. Manual models allow you to rotate the arm by hand in one or both directions. Electronic models use a motorized head to lock and unlock the arm on demand, with each direction independently set to either fail-lock or fail-open upon power loss. ADA-compliant gates are limited to electronic, two-way operation with fail-open logic for safe egress.

Available Models

Model	Height	Width	Depth	Arm Length	Passage
EX100-R (Round)	38.925"	36.750"	8.875"	15"	15" + 3" max
EX100-R-ADA	38.925"	36.750"	8.875"	36"	36" + 3" max
EX100-R-ADA-M***	38.925"	36.750"	8.875"	36"	15" + 3" max
EX100-R-BLK (Blank)	38.925"	36.750"	8.875"	No Arm	No Arm

Specifications

• Type: Waist-high turnstile with tripod arm
• Cabinet Material: 304 Stainless Steel/Satin Finish
• Top Material: Solid Surface (similar to Corian)
• Arm Material: Stainless Steel
• Control Types: Manual or electronic operation available
• Fail-Safe Configuration: Each electronic direction configurable as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss
• ADA Configuration: Available only as electronic, both ways fail open
• Application Environment: Interior use

Production Options & Add-Ons

Review and select these items before calling to order. Each choice affects pricing, lead time, and final configuration.

Control Options

• Manual Both Ways - free rotation in both directions
• Manual One Way/No Passage in Opposite Direction - allows rotation in one direction only
• Electronic One Way/Free Exit - entry controlled, exit free
• Electronic One Way/No Exit - entry controlled, exit blocked
• Electronic Both Ways - credential-controlled in both directions
• Each electronically controlled direction can be configured as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss
• ADA models are available only as electronic; both ways fail open

Finish Options

• Cabinet: 304 Stainless Steel/Satin Finish (standard)
• Top: Solid Surface top, similar to Corian (standard)
• Arm: Stainless Steel
• 316 Stainless Steel Upgrade - available on large quantity orders

Additional Options

• Corian or Wood Top - upgrade the standard solid surface top to Corian branded material or wood (Executive Series models only)
• Lexan Arms - clear polycarbonate arms for ADA models (FastPass and Executive Series ADA models only)
• Custom Arm Lengths - up to 40 inches for ADA models only
• Variable Speed Self-Opening Motorized Arm - motorized arm operation with safety clutch to prevent injury
• Home Position Switch - additional limit switch provides SPDT output while at home for security integration
• Proximity Sensor Upgrade - replaces limit switches with proximity sensors for extended part longevity
• Bidirectional Key Override Set - allows the turnstile to be locked independently in each direction with a key (manual or electric 2-way units; on Executive ADA Gates, available only as electronic 2-way fail open)
• Tri-Color LED Light Board - integrated LED indicator built into the cabinet top (Executive Series models only)
• Daylight Visible Indicator Lights - tri-color (red/green/yellow) indicator visible in bright light; most models use red/green
• Rubber Arm Guards - protective covers for tripod arms (tripod arm units only)
• Request to Exit ADA Placard Button - surface-mount button in rectangular or round enclosure
• 8 Digit Key Resettable LCD Counter - traffic counter with 7-year lithium battery
• Single or Double Push Button - installed on site for remote release
• One Channel 900 MHz Wireless Receiver - one per direction
• One or Two Button Wireless Key Fob Transmitter
• Battery Back-Up - 12 Ah battery kit with two 12 VDC batteries and 2 amp 24 VDC charger
• 316 Stainless Steel Upgrade - enhanced corrosion resistance (large quantity orders only)

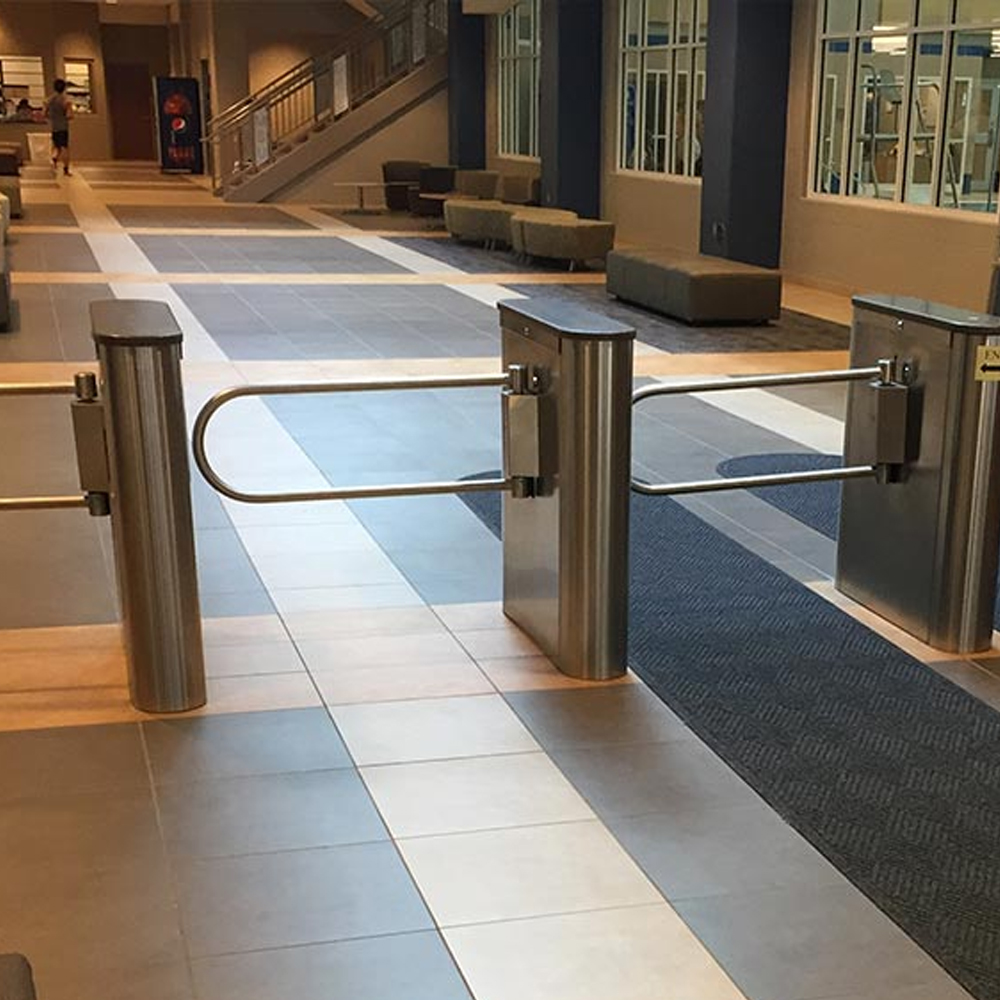

Executive EX100 Waist High Turnstile Installation Gallery

If you have any further questions, please reach out to our representatives. They are happy to help in any way they can!
