Brute Waist High Turnstiles

The Brute Series is a cost-effective, heavy-duty waist-high turnstile line built for high-traffic locations that need reliable entry control without a premium price tag. The standard tripod model works indoors or out, while the portable version rolls into place for temporary events, construction sites, or seasonal openings. A matching ADA swing gate is available to complete an accessible entry array. This turnstile is built for:

Interior or exterior use - standard powder-coated cabinet stands up to commercial conditions
High-traffic, budget-conscious sites - schools, stadiums, retail, manufacturing, and recreation facilities
Portable deployment - the BR5500-P includes a base plate, wheels, and a curved lane-creation bar
Integration-ready - interfaces with optional LCD counters, card readers, push buttons, and wireless remote controls
System compatibility - nearly universal integration to any number of access control systems

How Our Options Work

Every Brute unit is anchored by a heavy 7-gauge carbon steel cabinet and operates with the 6500 Series Control Head. You choose manual rotation for simple traffic metering, or electronic control for credential-based entry and exit. You can set each electronic direction independently to fail-lock or fail-open on power loss. ADA models swap the tripod arm for a wide U-arm (or straight arm) swing gate that accommodates wheelchairs and carts.

Available Models

Model	Height	Width	Depth	Base	Arm Length	Passage

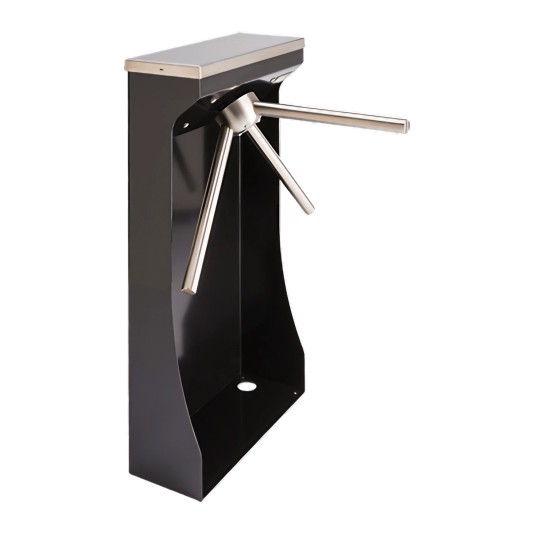

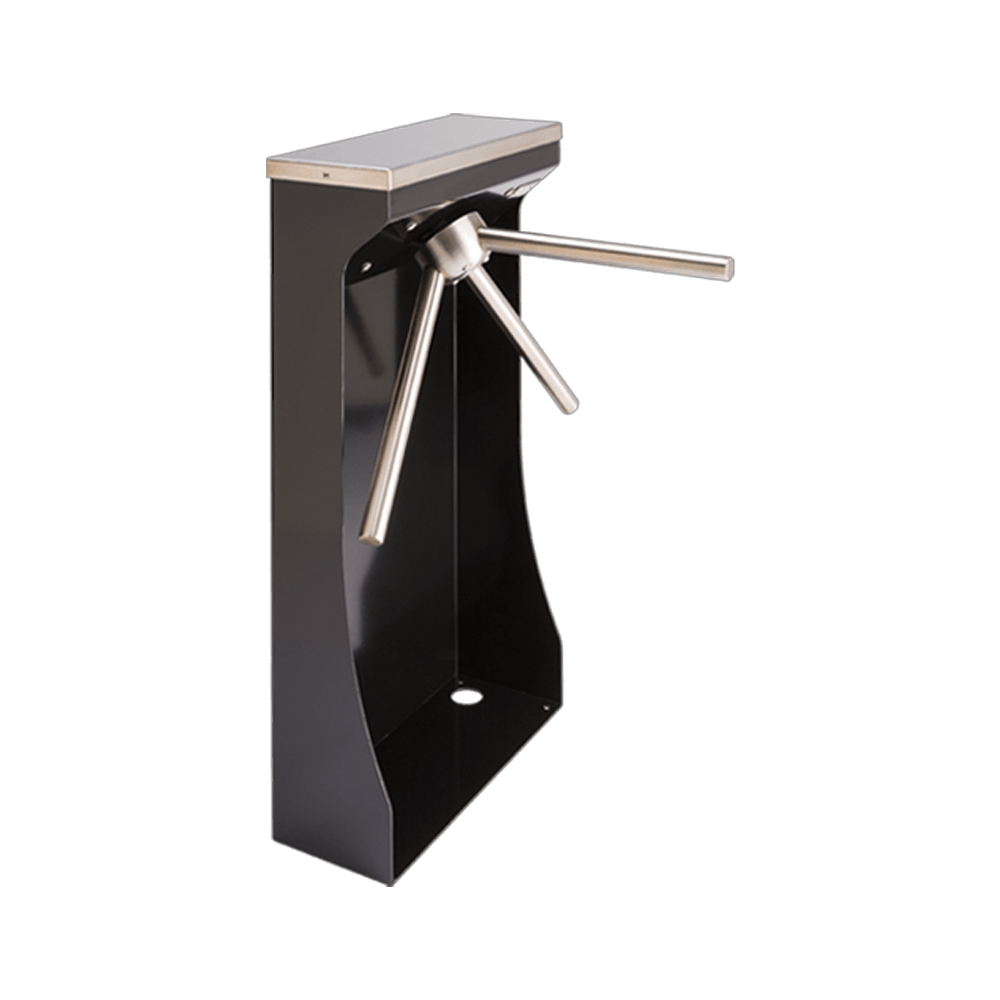

BR5500-S (Tripod)	37"	20.125"	8.187"	8"	14.5"	14.5" + 3" max

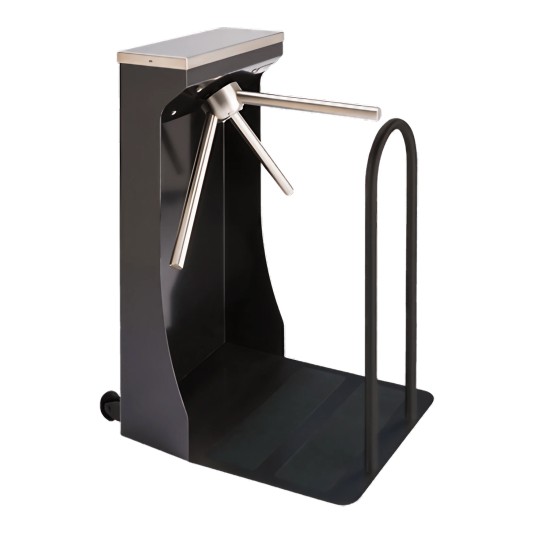

BR5500-P (Portable)	37"	20.125"	8.187"	32.4"	14.5"	17.5"

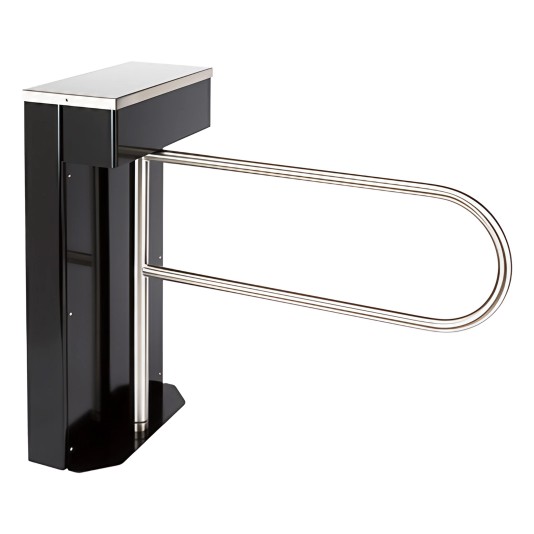

BR5000-ADA (Swing Gate)	37"	20.125"	10.375"	4.375"	34.437"	36" = 3" max

Specifications

Type: Waist-high tripod turnstile; portable tripod; ADA swing gate
Cabinet Material: Heavy 7-gauge carbon steel
Top Material: Stainless steel/satin finish
Arm Material: Stainless steel
Weight: 150 lbs (BR5500-S); 190 lbs (BR5500-P); 250 lbs (BR5000-ADA)
Shipping Dimensions (BR5500-S): 12" x 21" x 38"
Control Types: Manual or electronic operation available
Fail-Safe Configuration: Each electronic direction configurable as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss
Finish: Powder-coated cabinet with stainless steel top standard; custom colors available

ISO 9001:2015 Certified Quality

Built in the USA

Intertek ETL Listed

Brute Series Waist High Turnstile Downloadables

Brute BE800 R Data Sheet Brute BE800 X Data Sheet Brute BE800 Z Data Sheet Brute BR5500 S Data Sheet Brute BR5500 ADA Data Sheet Brute BR5500 ADA M Data Sheet Brute BE800 R Manual Brute BR5500 S Manual Brute BR5500 S Motorized Manual Brute BR5500 Manual Brute BR5500 ADA Manual Brute BE800 R Specification Sheet Brute BE800 X Specification Sheet Brute BE800 Z Specification Sheet Brute BR5500 ADA Specification Sheet Brute BR5500 S Specification Sheet 6500 Control Head Manual

Production Options & Add-Ons

Review and select these items before calling to order. Each choice affects pricing, lead time, and final configuration.

Control Options

Choose the traffic flow pattern that matches your security plan:

Manual Both Ways - free rotation in both directions
Manual One Way/No Passage in Opposite Direction - allows rotation in one direction only
Electronic One Way/Free Exit - entry controlled, exit free
Electronic One Way/No Exit - entry controlled, exit blocked
Electronic Both Ways - credential-controlled in both directions
Each electronically controlled direction can be configured as FAIL LOCK (fail secure) or FAIL OPEN (fail safe) upon power loss

Finish Options

Cabinet: Heavy 7-gauge carbon steel with powder-coated baked polyester enamel (standard color is black)
Top: Stainless steel/satin finish
Arm: Stainless steel
316 Stainless Steel Upgrade - available on large quantity orders

Vulcan Black (standard)
Standard White
Oyster White
Grey Aluminum
Distant Blue
Gentian Blue
Leaf Green
Terra Brown
Custom colors - available upon request

Additional Options

Home Position Switch - additional limit switch provides SPDT output while at home for security integration
Proximity Sensor Upgrade - replaces limit switches with proximity sensors for part longevity
Bidirectional Key Override Set - allows the turnstile to be locked independently in each direction with a key (manual or electric 2-way units)
Daylight Visible Indicator Lights - tri-color (red/green/yellow); most models use red/green
Rubber Arm Guards - protective covers for tripod arms (tripod units only)
Request to Exit ADA Placard Button - rectangular or round surface-mount enclosure
Custom Arm Lengths - up to 40" for ADA models only
Straight Arm Instead of U-Arm - for the BR5000-ADA model only
8 Digit Key Resettable LCD Counter - traffic counter with 7-year lithium battery
Single or Double Push Button - installed on site for remote release
One Channel 900 MHz Wireless Receiver - one per direction
One or Two Button Wireless Key Fob Transmitter
Battery Back-Up - 12 Ah battery kit with two 12 VDC batteries and 2 amp 24 VDC charger
Signage Brackets - customer provides the sign; bracket mounts to the unit
316 Stainless Steel Upgrade - enhanced corrosion resistance (large quantity orders only)

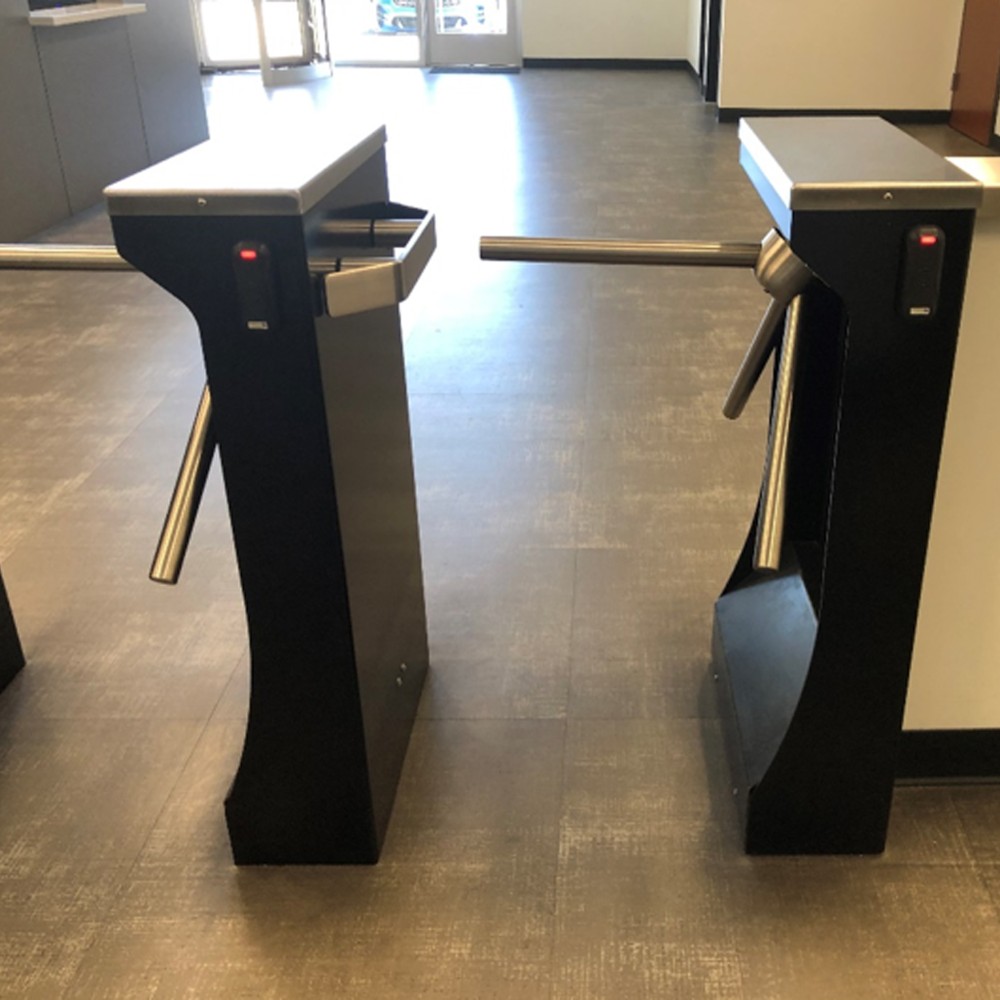

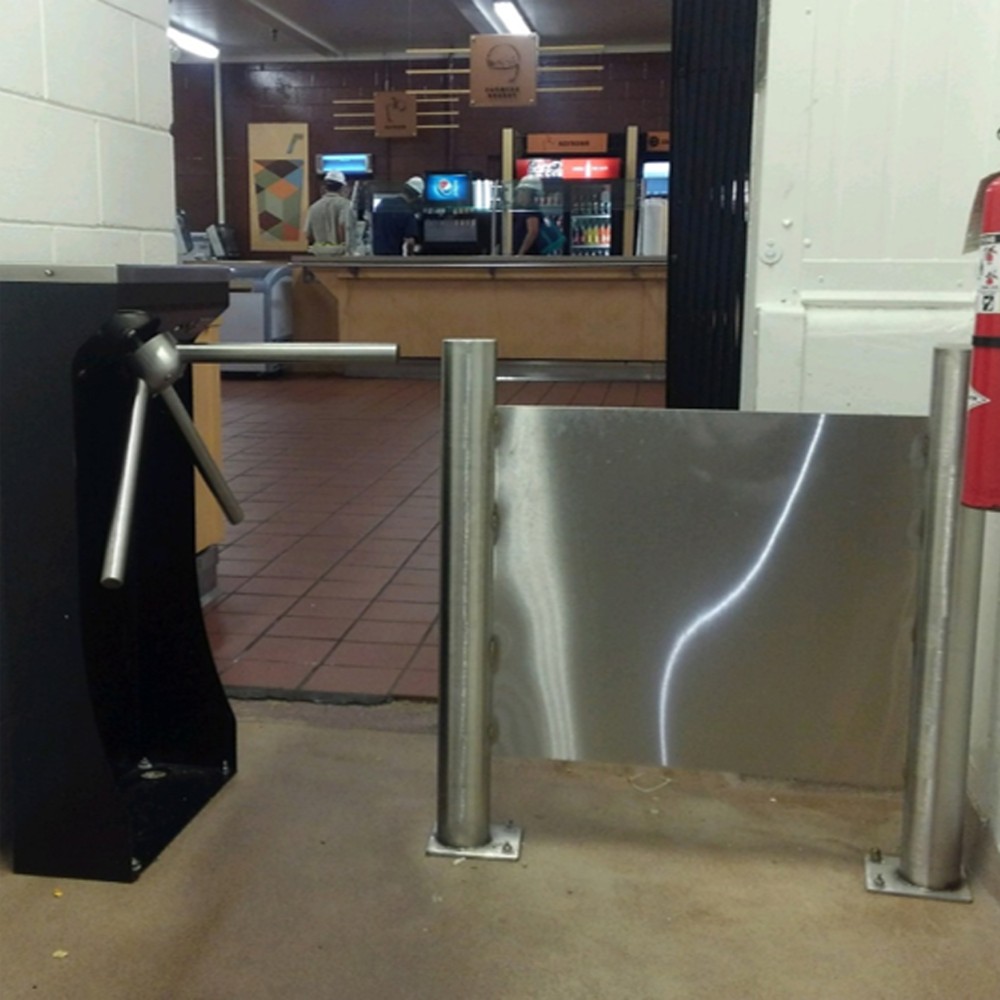

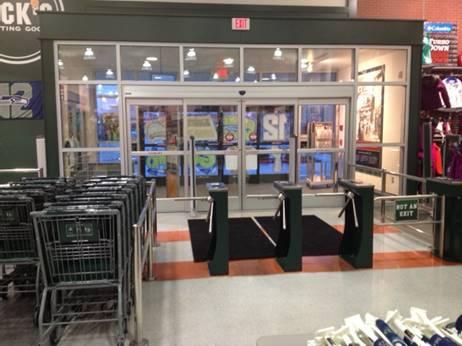

Brute Series Waist High Turnstiles Installation Gallery

If you have any further questions, please reach out to our representatives. They are happy to help in any way they can!
