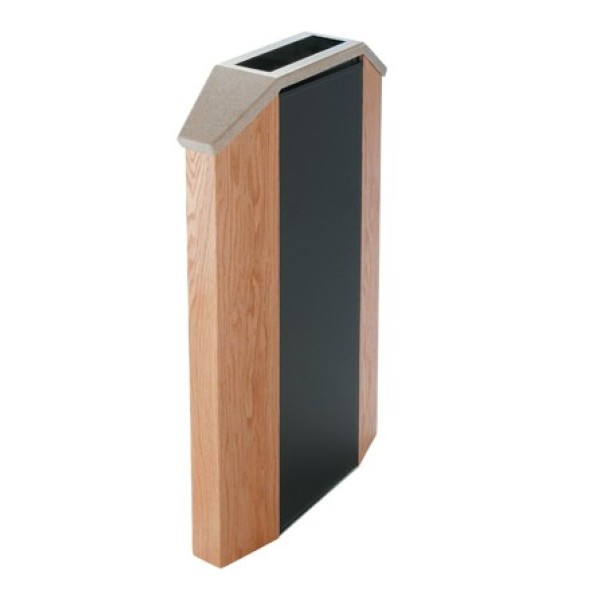

Low Profile Optical Turnstile, Beacon Series Wood Cabinet - BE800-W
Details
Low Profile Optical Turnstile, Beacon Series Wood Cabinet - BE800-W
The Beacon Series is our line of barrier-free pedestrian control devices. Using a non-restrictive method to control traffic flow, these optical turnstile units are ideally suited for office personnel entrances where the majority of the people enter using an ID card. This allows for rapid pedestrian advancement and barrier-free ADA access while preventing "tail-gating" by those without credentials. This unit is made with a wood cabinet.
BE800-W-P (Primary): This is the cabinet that sends signals to the middle cabinet BE800-WM.
BE800-W-H (Hybrid): This cabinet receives from BE800-W and sends a signal to the next cabinet BE800-WR.
BE800-W-S (Secondary): This is the receiver cabinet.
Example: In a 2-lane array you would have [BE800-W-P] {Walkway} [BE800-W-H] {Walkway} [BE800-W-S]
Key Features:
- Height: 39" (988.7 mm)
- Width: 9" (225.4 mm)
- Depth: 37" (933.4 mm)
- Aesthetic Wood Cabinet
Optical Features:
- Optical sensors allow passage of 30 people/minute
- Powerful through-beam sensors to ensure proper functionality
- Tri-color indicator lights for lane status
- Optical sensors to prevent unauthorized "crawling" thru lane
- Configure for controlled passage in one or both directions
- Audible tone provided in an alarm condition to integrate to another system
| SKU | BE800-W |
|---|---|
| Pedestrian Clearance | N/A or Varies |
| Type of Turnstile | Optical, Waist-high |
| Full Height of the Turnstile | 38" |
| ADA Compliant | Yes |
