Low Profile Optical Turnstile, Beacon Series Stainless Steel - BE800-S

Details

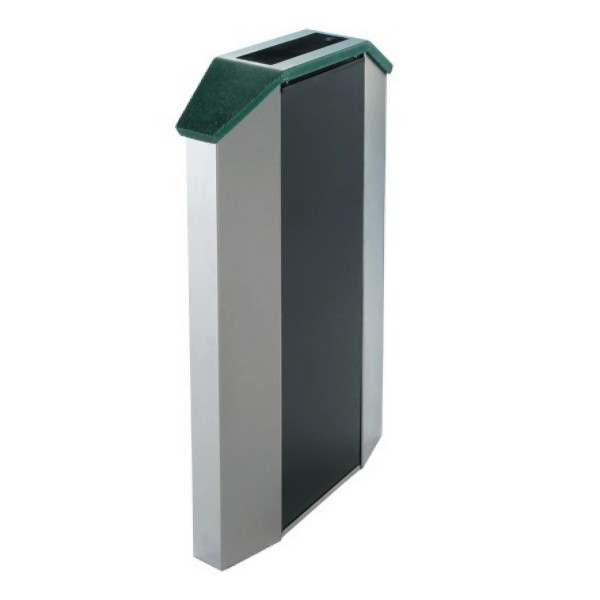

Low Profile Optical Turnstile, Beacon Series Stainless Steel - BE800-S

The Beacon Series is our line of barrier-free pedestrian control devices. Using a non-restrictive method to control traffic flow, these optical turnstile units are ideally suited for office personnel entrances where the majority of the people enter using an ID card. This allows for rapid pedestrian advancement and barrier-free ADA access while preventing "tail-gating" by those without credentials.

BE800-S-P (Primary): This is the cabinet that sends signals to the middle cabinet BE800-SM.

BE800-S-H (Hybrid): This cabinet receives from BE800-S and sends a signal to the next cabinet BE800-SR.

BE800-S-S (Secondary): This is the receiver cabinet.

Example: In a 2-lane array you would have [BE800-S-P] {Walkway} [BE800-S-H] {Walkway} [BE800-S-S]

Key Features:

• Height: 39" (988.7 mm)
• Width: 9" (225.4 mm)
• Depth: 37" (933.4 mm)
• Aesthetic Low-Profile Stainless Steel Design

Optical Features:

• Optical sensors allow passage of 30 people/minute
• Powerful through-beam sensors to ensure proper functionality
• Tri-color indicator lights for lane status
• Optical sensors to prevent unauthorized "crawling" thru lane
• Configure for controlled passage in one or both directions
• Audible tone provided in an alarm condition to integrate to another system
