The Complete Turnstile Buyer's Guide: How to Choose the Right Model for Your Facility

The Complete Turnstile Buyer's Guide: How to Choose the Right Model for Your Facility

The Tiffany P60 Full-Height Aluminum Turnstile - Bronze

Whether you are securing a corporate lobby, a mass-transit hub, a sports stadium, or a manufacturing floor, turnstiles are the first line of defense between public space and controlled access. Selecting the right model, material, and access-control integration is critical: not only for security, but for throughput, compliance, and return on investment.

Start With the Fundamentals

Before comparing models, answer these five questions:

Question	Why It Matters
How many people pass through per minute?	Determines whether you need a standard tripod, a high-speed optical lane, or multiple V-speed gates running in parallel.
Is the installation indoors, outdoors, or both?	Outdoor installations demand weather-rated, anti-vandal housings (often galvanized or 316 stainless steel). Indoor lobby applications favor aesthetic finishes such as brushed stainless, powder coat, or architectural glass.
What is the required security level?	Anti-tailgating, intrusion detection, and full-height containment all dictate different mechanical solutions.
Do you need ADA /wheelchair accessibility?	Federal and state regulations may require at least one ADA-compliant lane (swing gate or wide optical passage) for every bank of turnstiles.
What is your total project budget over 10 years?	Include purchase price, installation, maintenance cycles, and access-control software licensing.

Match the Product Category to Your Application

Tripod Turnstiles

The most widely deployed turnstile worldwide. Tripod turnstiles are cost-effective, mechanically simple, and ideal for moderate-security indoor environments such as factories, cafeterias, and gymnasiums.

Best for: Budget-conscious projects with predictable, unidirectional traffic
Throughput: 25-30 persons/minute.
Available features: Positive-action push-bar entry, motorized locking disc mechanisms, mechanism with positive locking.

Waist-High Turnstiles

Also known as "half-height" units, these provide a physical barrier at hip level. They work well in supervised areas where deterrence is more important than absolute prevention of climbing.

Best for: Employee entrances, training facilities, and visitor management checkpoints.

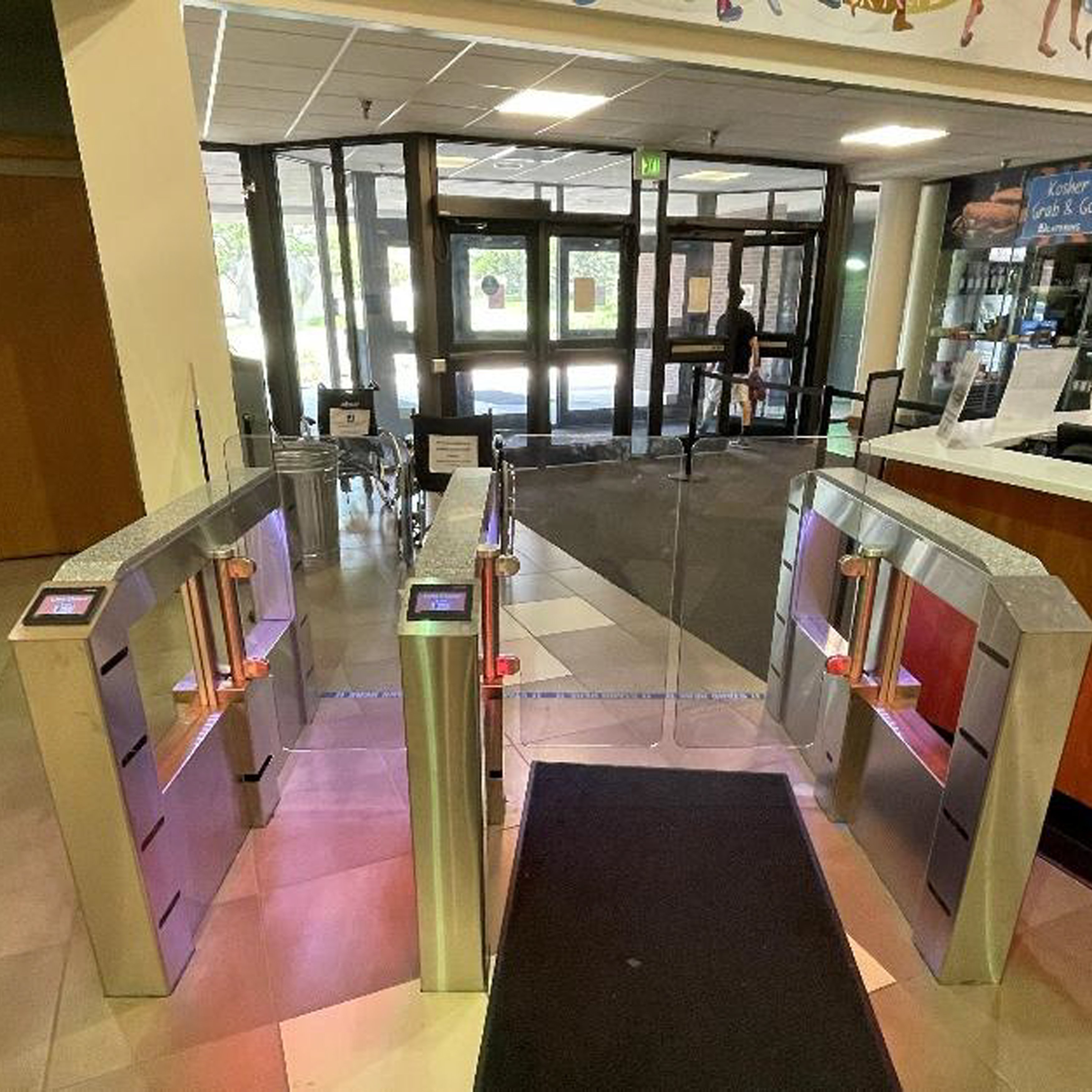

Optical turnstiles use infrared sensors to detect unauthorized passage (tailgating, crawling, loitering) without relying on a physical barrier 24/7. When an alarm is triggered, glass or acrylic wings close rapidly.

Best for: Corporate headquarters, financial institutions, and high-end commercial lobbies where architecture and aesthetics are paramount.

Throughput: Up to 40+ persons/minute per lane.

Available features: Modern infills, transparent housing materials, remote monitoring capability.

V Speed Gates

Designed for "super-high" throughput environments where speed and ADA-compliant width are both required. Adults with wheelchairs, luggage, or delivery carts can pass without switching lanes.

Best for: Airports, mass transit, and large convention centers.
Throughput: 35-45 persons/minute; wider passage than standard optical lanes.
Note: Because adults-only optical lanes can exclude families or travelers with gear, V-speed configurations ensure equitable access.

A hybrid solution combining the compact footprint of a tripod with the smooth motorized action of an optical unit.

Best for: Premium office environments looking for a modern, quiet alternative to traditional tripod mechanics.

Features: Motorized locking mechanisms, quiet operation, push-button or proximity-card activation.

ADA Gates & Swing Gates

Every compliant installation needs a wheelchair-accessible lane. ADA gates and swing gates integrate with adjacent turnstile banks and unlock automatically during fire-alarm or emergency-egress events.

Best for: Any public facility or employer subject to ADA Title III or local accessibility codes.

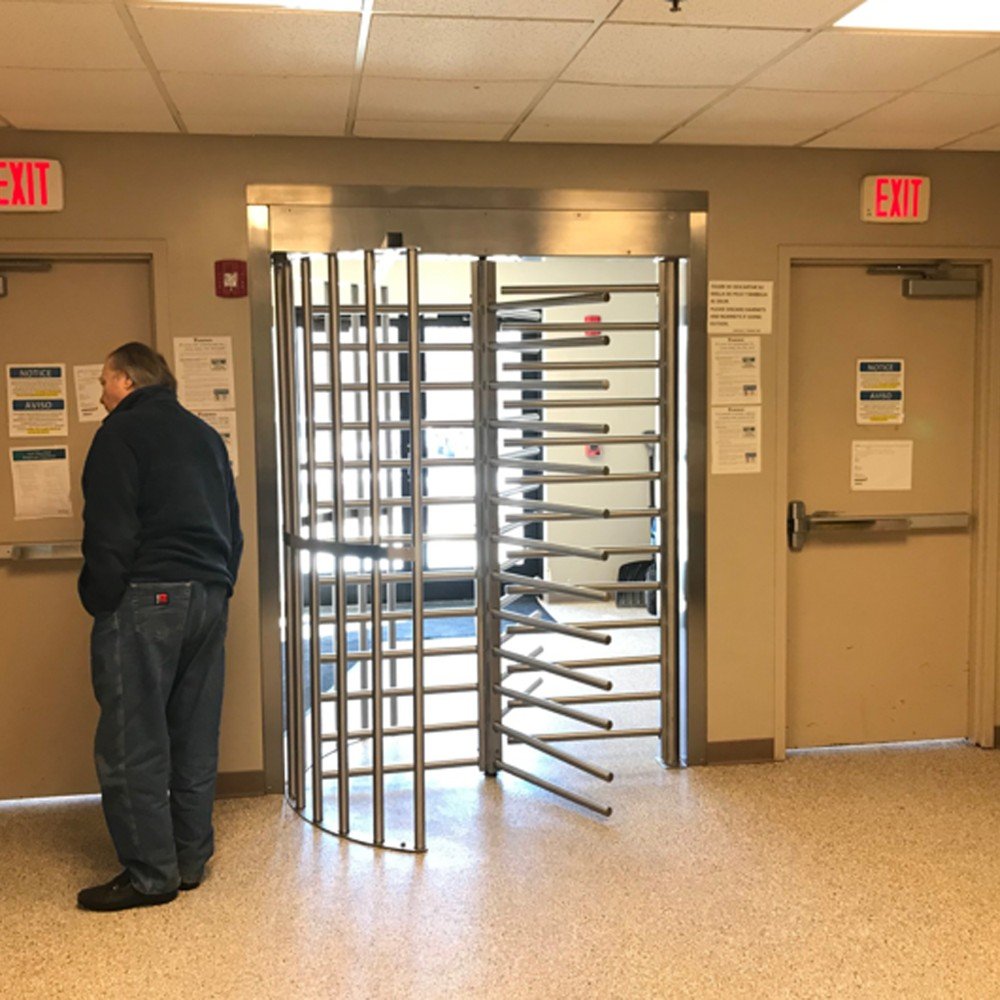

Turnstile Doors, Security Revolving Doors, & Security Barriers

For total perimeter control, full-height and revolving-door solutions prevent climbing, tailgating, and unauthorized reversal.

Security Revolving Doors: The gold standard for anti-tailgating. Sensors inside the drum detect piggybacking and stop rotation. These are best for Data centers, R&D labs, and cash-handling facilities.
Turnstile Doors & Security Barriers: Fixed barred barriers with integrated wicket or motorized gates deliver robust outdoor security. These are best for Construction sites, parking garages, and industrial perimeters.

Portable Turnstiles

Temporary but fully functional. Portable units provide immediate crowd control without permanent installation.

Best for: Outdoor events, seasonal venues, construction-phase sites, and emergency rerouting.
Features: Industrial-rated housings, outdoor and indoor suitability, positive-action push-button accessibility.

Stadium Turnstiles

Engineered for extremely dense crowds. These units operate at "crush height" and withstand impact.

Best for: Sports arenas, concert venues, and fairgrounds.
Features: Heavy-duty mechanism, high-traffic rated, numerate (count) capability.

Gate Operators & Access Control Systems

No turnstile is complete without the brain behind it. Gate operators provide the motorized action for swing and slide barriers, while access-control systems unify credentials (badges, biometrics, mobile) across your enterprise.

Integration tip: Ensure your selected turnstile brand supports your access-control platform.

Materials and Architectural Finishes

The housing material directly affects longevity, maintenance, and curb appeal.

Material	Characteristics	Typical Application
304 Stainless Steel	Brushed or mirror finish; excellent indoor corrosion resistance	Corporate lobbies, clean-room environments, indoor office buildings
316 Stainless Steel	Higher molybdenum content; superior salt and chemical resistance	Coastal buildings, pools, outdoor transit, food-processing plants
Powder-Coated Steel	Unlimited RAL color matching; durable baked-on finish	Schools, theme parks, branded environments, any indoor/outdoor application requiring color
Aluminum	Lightweight, non-corroding, modern industrial aesthetic	Contemporary architecture, canopies, and facilities where weight reduction matters
Galvanized Steel	Zinc-coated for rust prevention; economical for harsh weather	Outdoor perimeters, construction sites, industrial yards

Architectural Integration

Modern facilities often demand more than a silver box. We offer units with modern infills: glass, acrylic, stone, or wood-look panels that integrate with your interior design without sacrificing security.

Aesthetic tip: If your lobby features brushed metals and soft lighting, specify a satin stainless optical turnstile with smoked-glass wings. If your venue is a university gymnasium, powder-coated housings in school colors improve wayfinding and brand cohesion.

Compliance, Safety, and Emergency Egress

ADA Compliance: Always plan for at least one accessible lane per direction. Specify push-button or hands-free activation where required.
NFPA/Life Safety: Turnstiles must not impede egress during fire alarms. Verify that your selected model offers fail-safe or fail-secure behavior aligned with local fire codes.
OSHA/Industrial Safety: Positive-action push-bar or push-button releases ensure workers can evacuate immediately, even during power loss.

Calculate Total Cost of Ownership (TCO)

Cost Factor	Considerations
Initial Purchase	Tripod and waist-high units are entry-level; optical and revolving-door systems are premium.
Installation	Foundation work, power drops, and network cabling vary by unit type.
Maintenance	Mechanical tripods need periodic brake adjustments; optical sensor arrays require calibration and lens cleaning.
Software/Credentials	License fees for access-control suites and credential provisioning (mobile, biometric, smart card).
Energy Use	Motorized optical lanes and revolving doors use more energy than passive tripod units but may reduce guard staffing.

Choosing the right turnstile is a balance of security, throughput, accessibility, aesthetics, and budget. Because TurnstilesNow distributes multiple leading brands rather than a single proprietary line, you receive objective guidance tailored to your building, not a forced fit. Contact our team to discuss your floor plans, traffic studies, and access-control integrations. We'll recommend the precise model, material finish, and credential platform for your project.
