Full-Height Turnstile Monitor RD70 Aluminum

Details

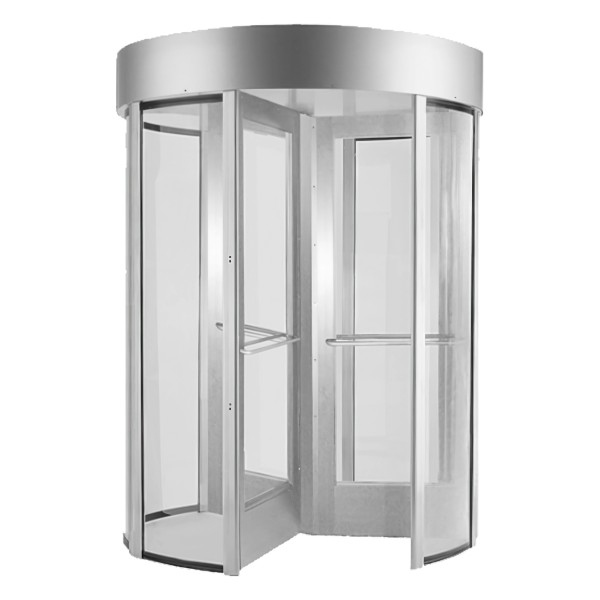

Full-Height Turnstile Monitor RD70 Aluminum

The Monitor RD70 Series is tamper-resistant and offers a full security card access revolving door. The RD70 series, made from durable aluminum, is designed for locations requiring visitor security or a barrier between production and office areas. Quiet day/night mode provides free passage during normal working hours and controlled usage after hours with card access or biometrics.

Measurements:

• Exterior Height: 91"
• Interior Height: 84"
• Diameter: 72"
• Pedestrian Clearance: 30"



Key Features:

• Made From Extruded Aluminum
• Lower Components Pre-Assembled With Concealed Spring Pins And Solid Rods
• Fasteners Are Stainless Steel
• Canopy And Outer Cage Panels Secured To Concrete With 3/4" Thread Rods, Epoxied Into Concrete
• Minimum of 6” Needed Above Canopy For Removal
• Rotor Pivots Are On A Sealed Load Runner Bearing, Held With High-Strength Plastic Coupling Anchored Into Concrete
• 3/16" Polycarbonate
• 1/4" Tempered Class
• 7 And 11 Gauge Steel (Mainframe/Canopy)
