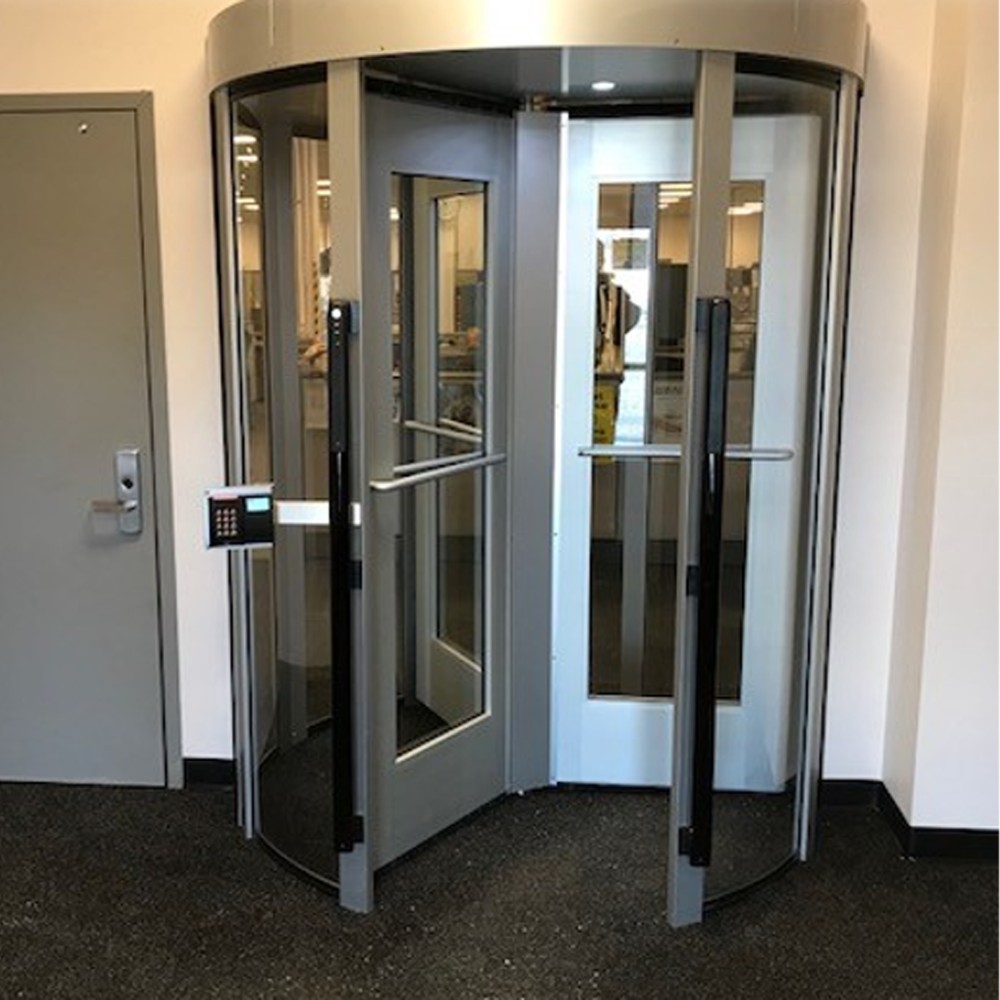

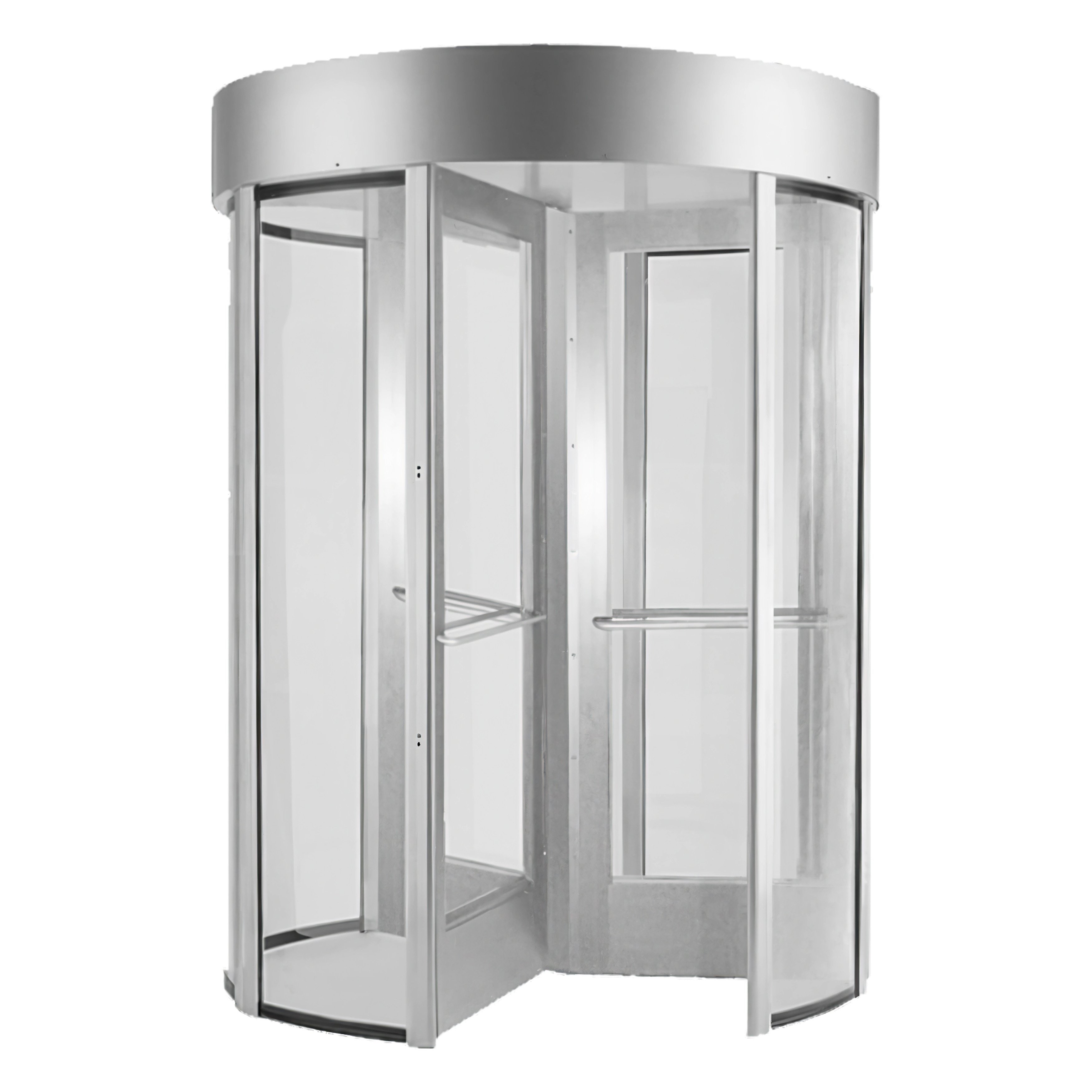

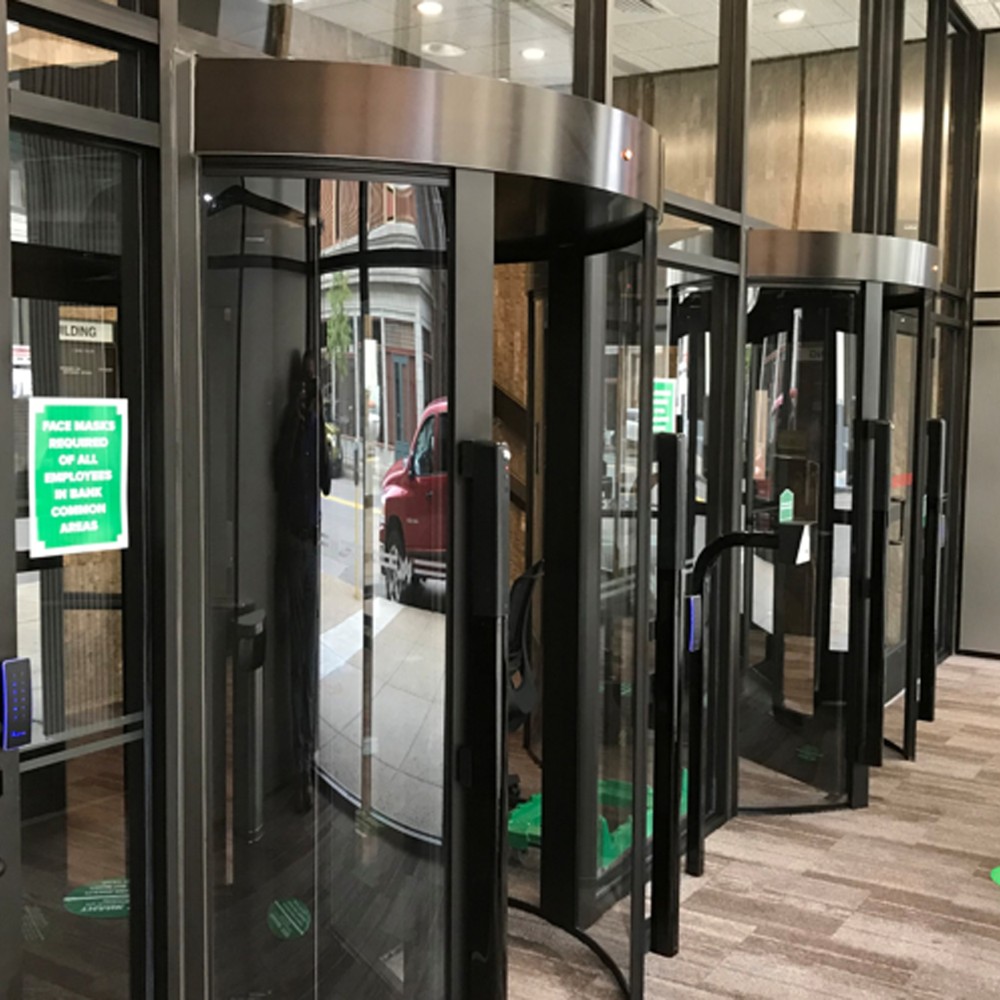

RD70 Series Single Full Height Turnstiles
To meet all of your security and control requirements, we feature the RD70 Portal Series which is a stylish 3-vane high security portal. It is designed for locations requiring improved visitor security or as the barrier between production and office areas. Instead of a traditional physical barrier to prevent passage in the wrong direction, the RD70 comes equipped with a high tech ultrasonic sensor. This sensor allows for a full door panel appearance while still enforcing standard turnstile passage flow.
Application/Use:
- Interior
- Electronic Both Ways
- Ideal for separating offices from production areas, lunchroom entrances, call centers and is used to enhance lobby vestibule entrances
- Three-vane, tamper resistant with the aesthetic appearance of a revolving door
- These units offer a modern, open feel while providing a secure full height portal
- Designed so that inbound and outbound traffic flows through in the same area of the portal
- An ultrasonic sensor is installed into the canopy to act as a barrier preventing wrong-way passage
- Can be interfaced optional LCD counters, computer attendance systems, card readers, push button and wireless remote controls
- Nearly universal integration to any number of access control systems
Available Finishes:
- Anodized Aluminum (Standard)
- Dark Bronze
- Other colors can be quoted upon request
Assembly & Hardware:
- Major lower components pre-assembled with concealed spring pins and solid rods
- All exposed fasteners are stainless steel
- Door panels and cosmetic covers secured with flat head screws
- Canopy & outer cage panels secured to concrete with 3/4" thread rods, epoxied into concrete
- Minimum of 6" needed above canopy in order for canopy to be removed
- Rotor pivots on a sealed load runner bearing, secured with high strength plastic coupling anchored into concrete
RD70 Series Single Full-Height Turnstile Downloadables:
RD70 Full Height Turnstile Specifications
Materials & Hardware:
- Various 6061 & 6063 extruded aluminum
- 3/16" scratch-resistant polycarbonate
- 3/4" scratch-resistant laminate
- 7 & 11 gauge steel (mainframe/canopy)
- Anodized aluminum sheet, canopy wrap
Electrical Specifications:
- Input Voltage: 100-240 VAC
- Input Current: 1.3 - .55 A
- Frequency: 50/60 Hz
- Storage Temperature: -40 to 158°F
- Operating Temperature: -4 to 131°F
- Operating Voltage: 24VDC
- Operating Current: 1.2 A (typical)
Dimensions:
- Exterior Height: 91" (2311.4mm)
- Interior Height: 84" (2133.6mm)
- Diameter: 72.284" (1836mm)
- Pedestrian Clearance: 29.750" (755.6mm)
6500 Series Control Head Specifications:
- Auto-indexing (self-centering) with adjustable hydraulic shock suppression
- Hardened tool steel locking bars, cam and roller assemblies
- Permanently lubricated bearings
- Your choice of manual or electronic control on both directions
- Nearly universal integration to any number of access control systems
- Your choice on each electronic direction of locking or unlocking on power failure
Certifications:
- Austenitic stainless steel:ASTM A240, A249, A276
- Hot rolled steel: AISI C-1020, AISI C-1018
- Hot dipped galvanizing: ASTM A-143, ASTM A-153-80
- All fasteners provided meet IFI ANSI/ASME Fastener Standards
- American Welding Society (AWS) Standard D 1.1
- UL 294
- UL 325
- UL Subject 2593
- CAN/ULC S319 & CSA C22.2#247
- ISO 90010:2015
Additional Add-Ons & Options for the RD70 Full Height Series:
- Home Position Switch: Additional limit switch provides a SPDT output while at home for security integration
- Proximity Sensor Upgrade: Replaces limit switches with proximity sensors for part longevity
- Bidirectional Key Override Set for Manual or Electric 2-Way Units: Allows the turnstile to be locked independently in each direction with a turn of a key
- Daylight Visible Indicator Lights: A tri-color (R/G/Y) indicator light. Most models only use R/G.
- Request to Exit ADA Placard Button with Plastic Surface Mount Enclosure: Rectangular or round
- DSI Entry Sentry Optical Anti-Tailgating Array: Adds an extra level of security by locking the unit and sounding an alarm in the event of a second person following another without presenting credentials
- Metal Detection Portal: HI-PE walk-through multizone metal detector integrated into turnstile with a remote relay unit that locks the turnstile upon alarm to disallow entry
- Single or Double Push Button (installed on site)
- One Channel 900 MHz Wireless Receiver
- One or Two Button Wireless Key Fob Transmitter
