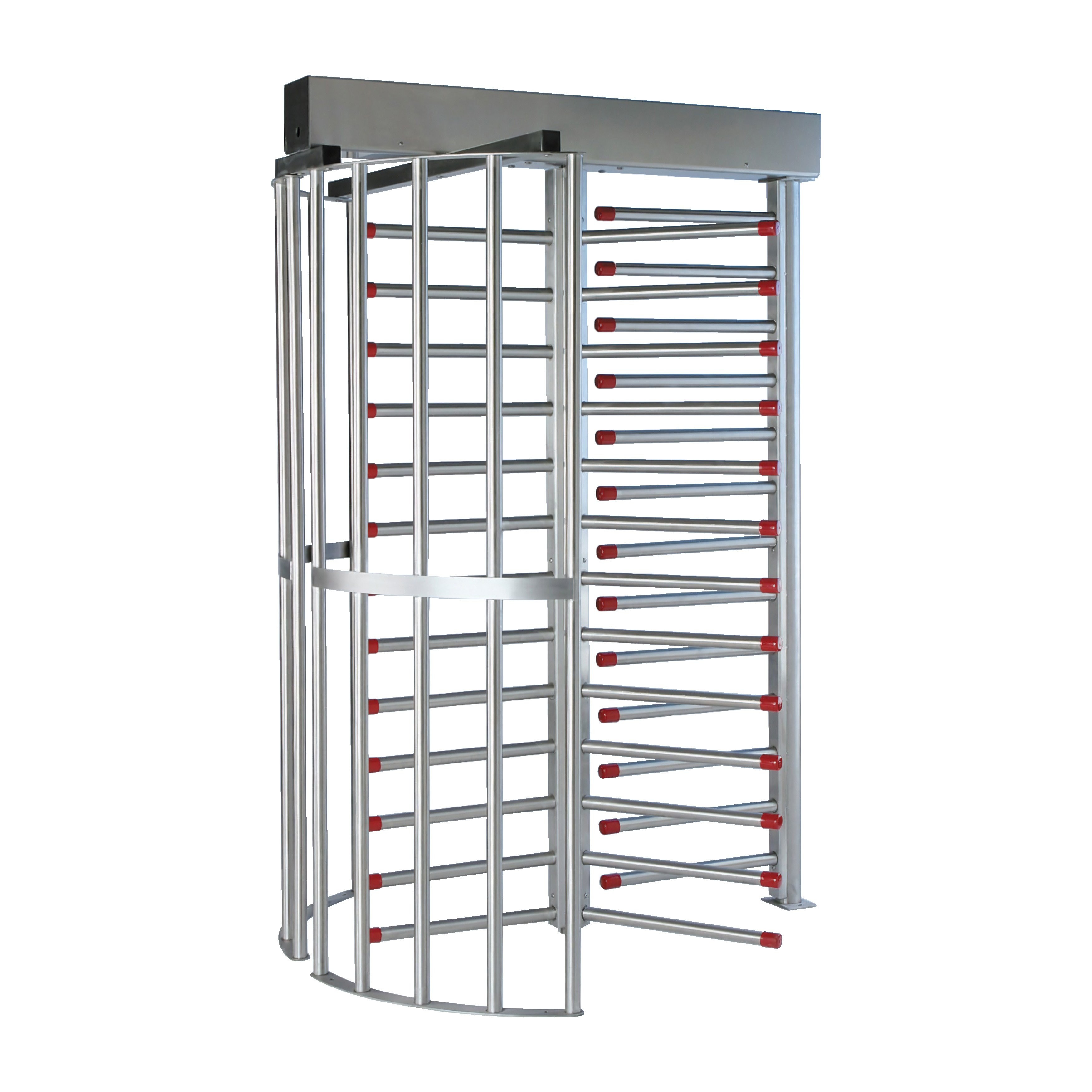

HS400 Series Single Full Height Turnstiles
To meet all of your security and control requirements, we feature the HS-400 High-Security Series single turnstile units which can be configured as stand-alone units or as part of an integrated system with state-of-the-art technology and features. Use these for exit/entry locations in amusement parks, stadiums, or any facility you like. One of our largest turnstiles, these are popular options for industrial settings or as an exit point for a public building. Additionally, this model has a Security Door Option (HS336) available.
Application/Use:
- Interior/Exterior
- Locate where you may or may not have a guard present
- Can function as stand-alone units or as part of an integrated system
- Nearly universal integration to any number of access control systems
- Can be interfaced with optional LCD counters, computer attendance systems, card readers, push button and wireless remote controls
Controls:
- Manual Both Ways
- Manual One Way / No Passage in Opposite Direction
- Electronic One Way / Free Exit
- Electronic One Way / No Exit
- Electronic Both Ways
Available Finishes:
- Carbon Steel – Galvanized (GALV)

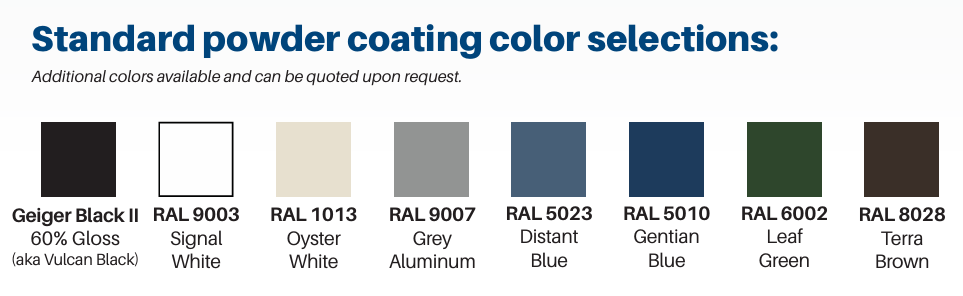

- Carbon Steel – Powder Coated (PC) (see available options below)
- Carbon Steel – PC over GALV
- Stainless Steel/Satin Finish (304)
- Stainless Steel/Satin Finish (316)
HS400 Single Turnstile Specifications
- Input Voltage: 100-240 VAC
- Input Current: 1.3 - .55 A
- Frequency: 50/60 Hz
- Storage Temperature: -40 to 158°F
- Operating Temperature: -4 to 131°F (Cold weather package available)
- Operating Voltage: 24VDC
- Operating Current: 1.2 A (typical)
- Dozens of customization options including material, finish, interfaces, and more
- Designed for secure operation with aesthetics in mind
- Featuring fully welded exterior components
- Minimal exposed stainless steel hardware
- Heavy gauge materials meeting ASTM standards
- Units are warranted against defects in materials and workmanship for a period of one year from date of delivery
- Overall Exterior Height: 91" (2311.4mm)
- Overall Passage Height: 84" (2133.6mm)
- Overall Removal of Cover: Minimum of 4" needed
- Compatible with HS336 Security Door and model HS348 Manual Passage Gate
- Built in the USA
- Auto-indexing (self-centering) with adjustable hydraulic shock suppression
- Hardened tool steel locking bars, cam and roller assemblies
- Permanently lubricated bearings
- Your choice of manual or electronic control on both directions
- Nearly universal integration to any number of access control systems
- Your choice on each electronic direction of locking or unlocking on power failure
- Austenitic stainless steel:ASTM A240, A249, A276
- Hot rolled steel: AISI C-1020, AISI C-1018
- Hot dipped galvanizing: ASTM A-143, ASTM A-153-80
- All fasteners provided meet IFI ANSI/ASME Fastener Standards
- American Welding Society (AWS) Standard D 1.1
- UL 294
- UL 325
- UL Subject 2593
- CAN/ULC S319 & CSA C22.2#247
- ISO 90010:2015
HS400 Series Single Full-Height Turnstiles Downloadables
| Model | Tubing | Passage Width | Passage Height | Overall Height | Overall Depth | Overall Width |
|---|---|---|---|---|---|---|
| HS427-S | 1 1/2" | 27" | 84" | 91" | 57" | 62" |
| HS427-S-HD | 1 3/4" | 27" | 84" | 91" | 57" | 62" |
| HS430-S | 1 1/2" | 30" | 84" | 91" | 59.1" | 66" |
| HS430-S-HD | 1 3/4" | 30" | 84" | 91" | 59.1" | 66" |
| HS439-S | 1 3/4" | 39" | 84" | 91" | 75.4" | 84" |
| HS427-S | 1 3/4" | 48" | 84" | 91" | 84" | 106" |
Additional Add-Ons & Options for the HS400 Series (Single):
- Home Position Switch integration: Additional limit switch provides a SPDT output while at home for security
- Proximity Sensor Upgrade: Replaces limit switches with proximity sensors for part longevity
- Bidirectional Key Override Set for Manual or Electric 2-Way Units: Allows the turnstile to be locked independently in each direction with a turn of a key
- Card Reader Mounting Plates (1 per electronic direction): For mounting most standard card readers
- Decorative End Caps: Colors come in black or safety orange
- Heal Guard Arm Covers: Available color is black
- Full Canopy (Stainless only with Box Tubing Frame): Mounts on top of unit
- Half Canopy (Powder Coated): Semi-circle that attaches to unit. Covers passage way only.
- Half Canopy (Stainless): Semi-circle that attaches to unit. Covers passage way only.
- Hinged or Split Covers: For tight clearance installations (with less than 9” clearance above cover)
- Cold Weather Package: Includes 250 Watt Thermostat Controlled Heater and Insulated Mainframe
- Lockout Bar (out of service lock): Prevents rotor from turning (padlock not included)
- Base Plate (galvanized): For portability of unit; HS427 & HS430 models only
- Single or Double Push Button (installed on site)
- One Channel 900 MHz Wireless Receiver (one per direction)
- One or Two Button Wireless Key Fob Transmitter
- Daylight Visible Indicator Lights: A tri-color (R/G/Y) indicator light. Most models only use R/G.
- Battery Back-Up: 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger
- Matching Custom Filler Barriers: Used to complete passage area (priced on a per job basis)
- Powder Coating Over Galvanizing Upgrade
- 316 Stainless Steel Upgrade

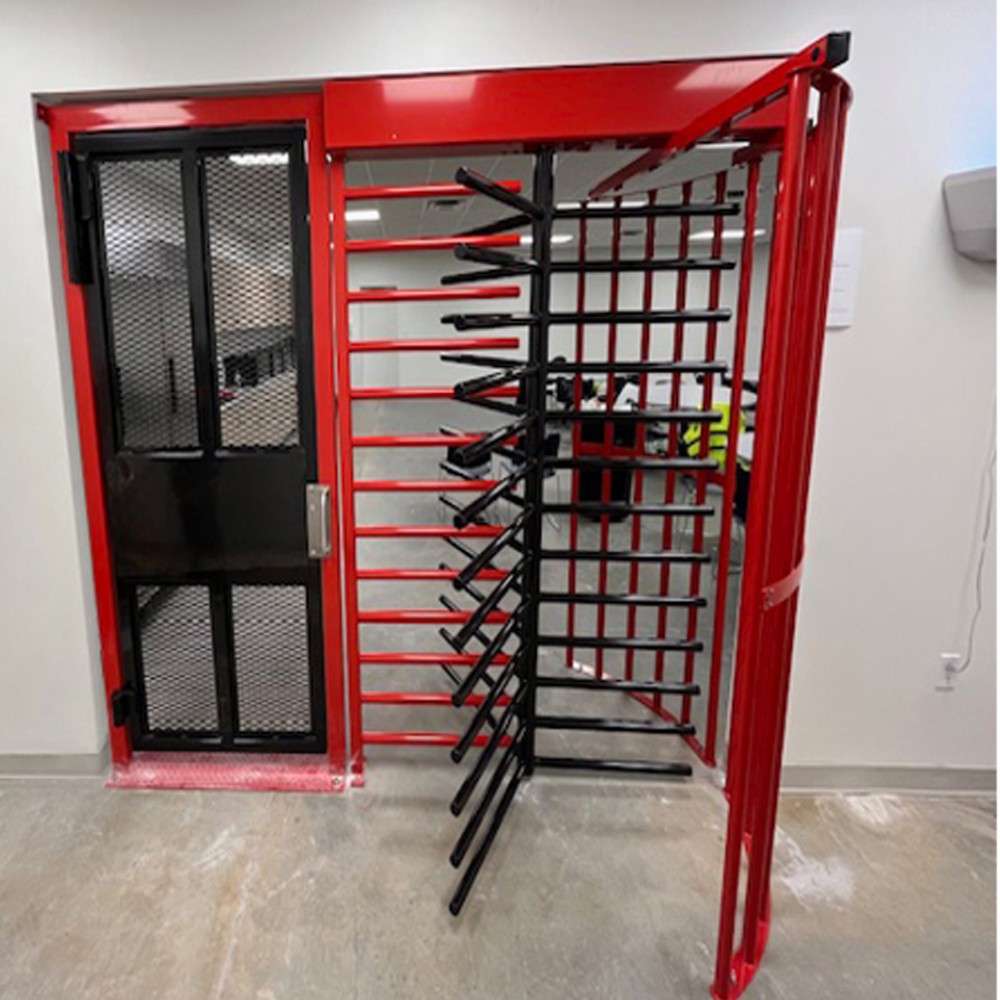

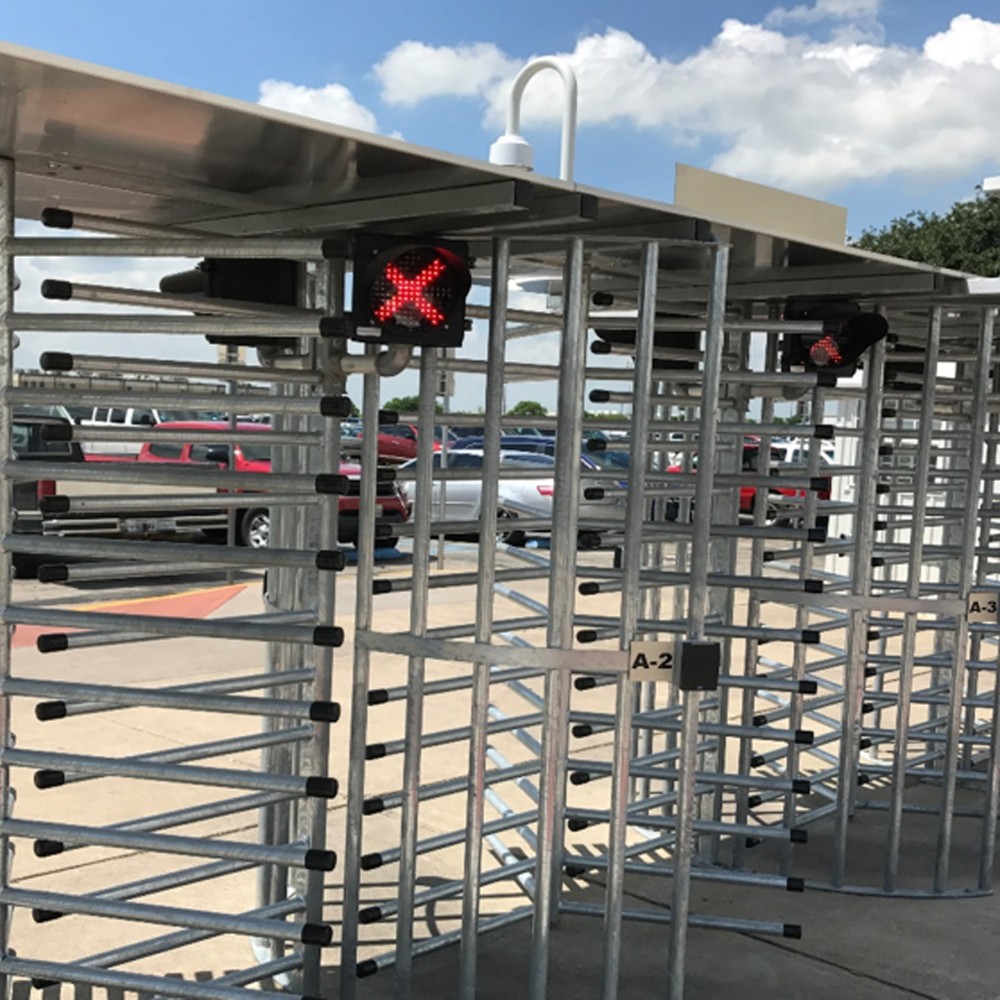

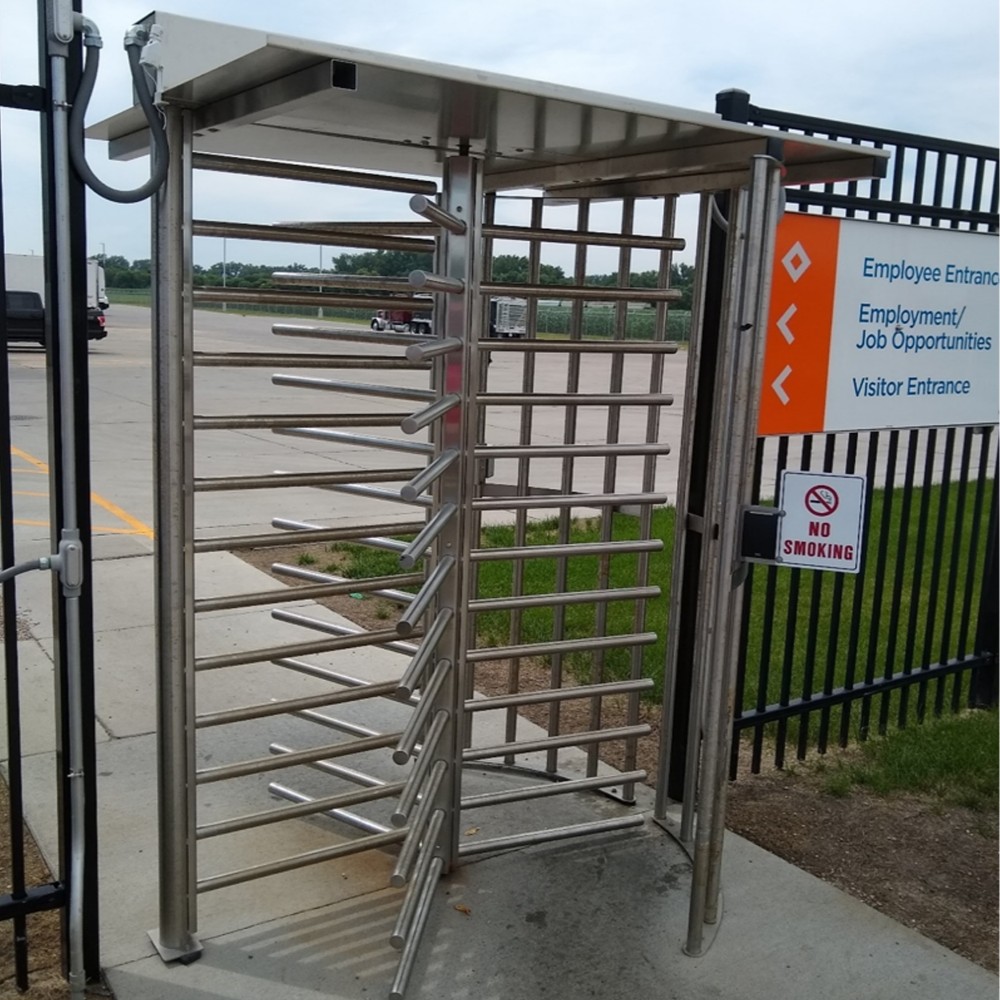

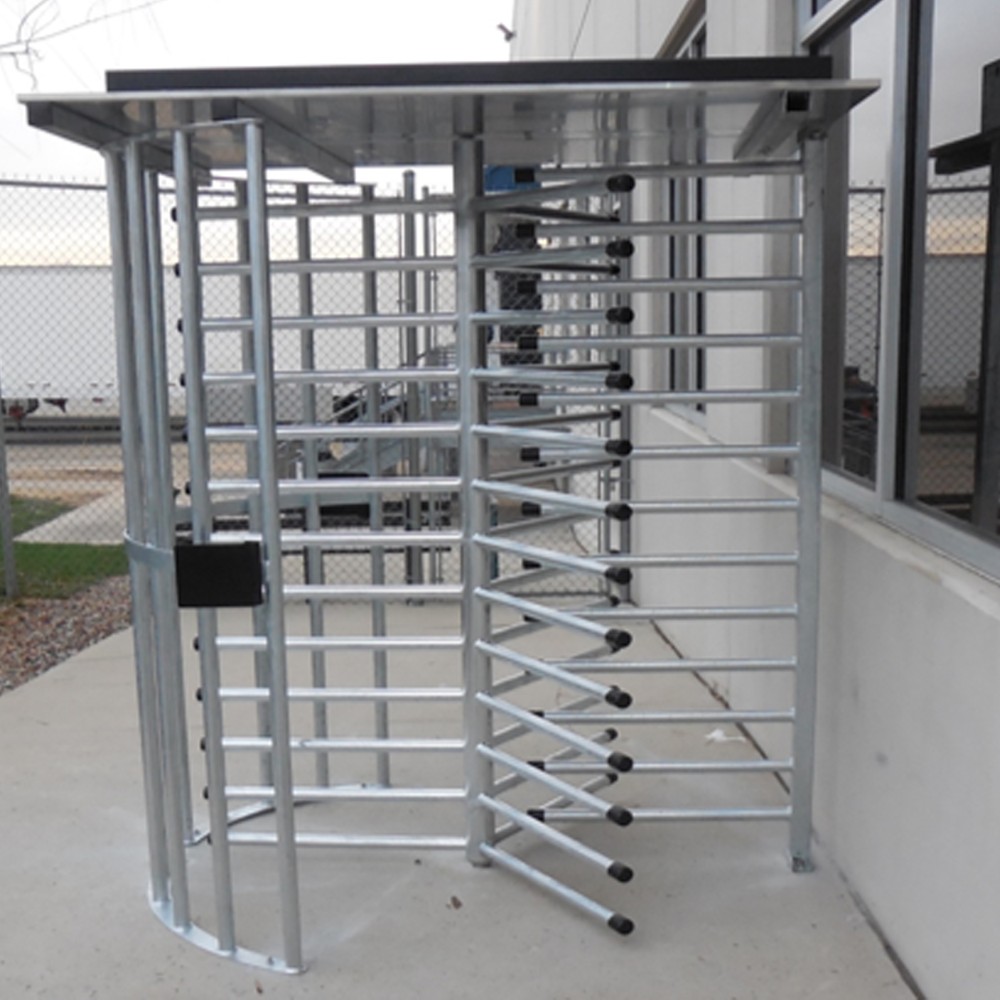

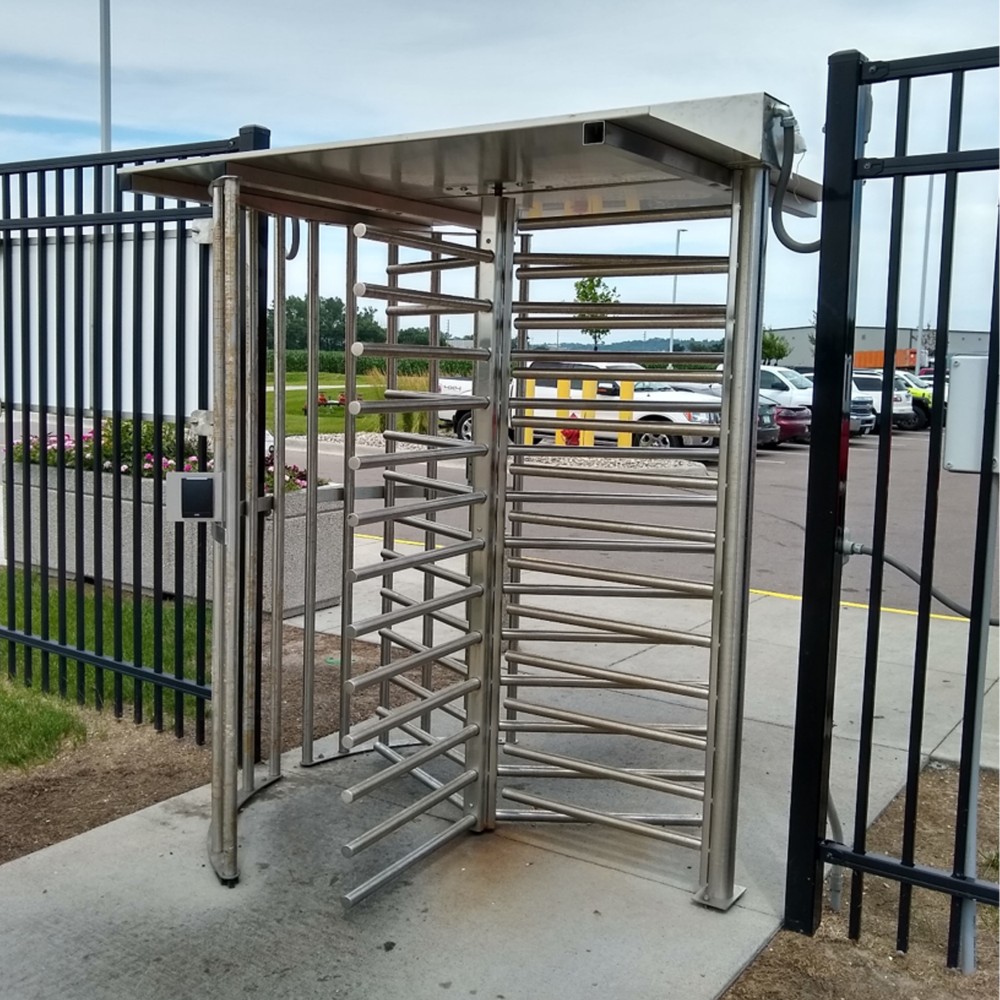

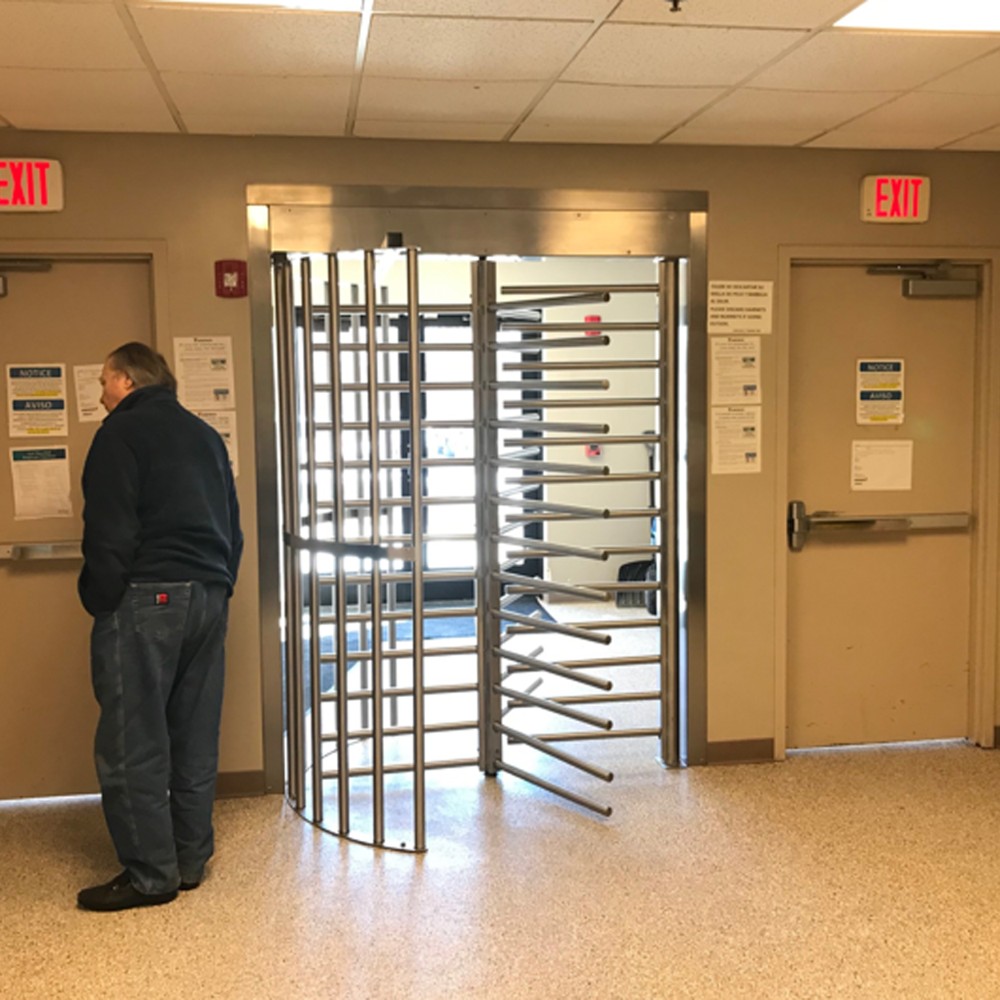

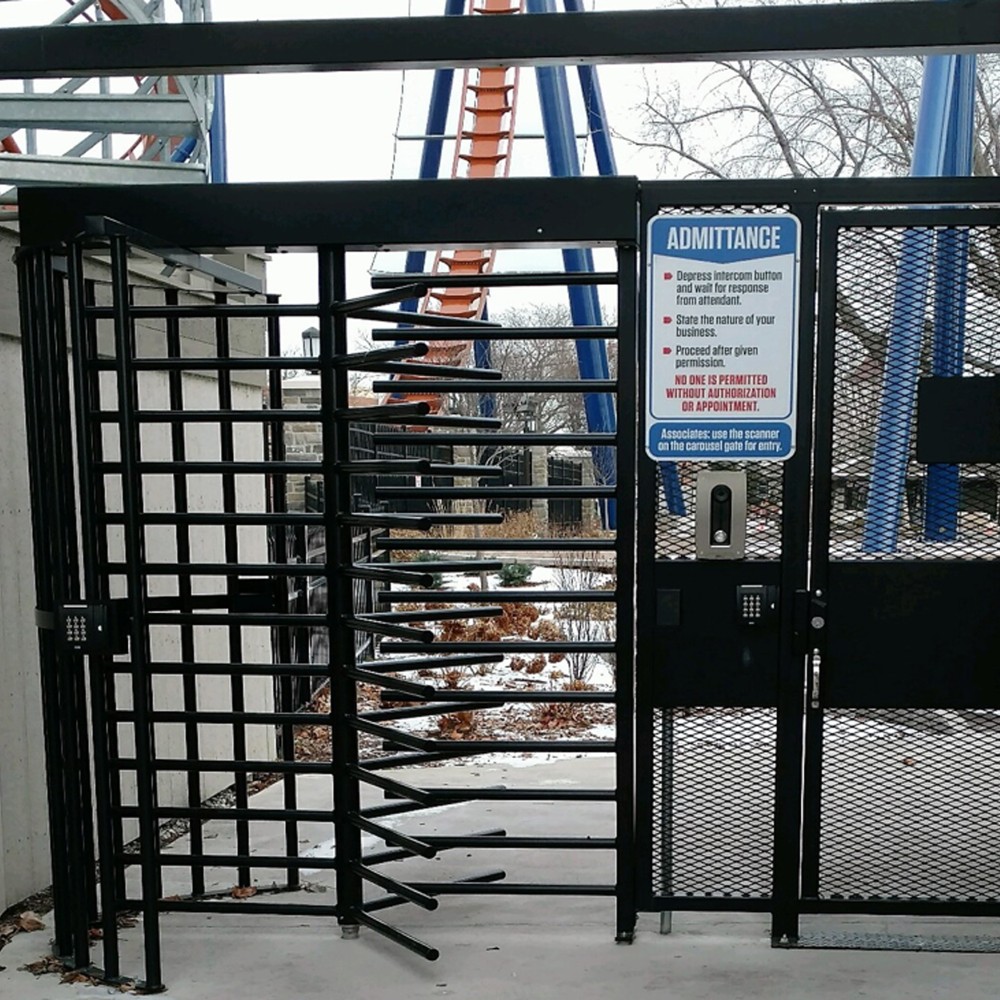

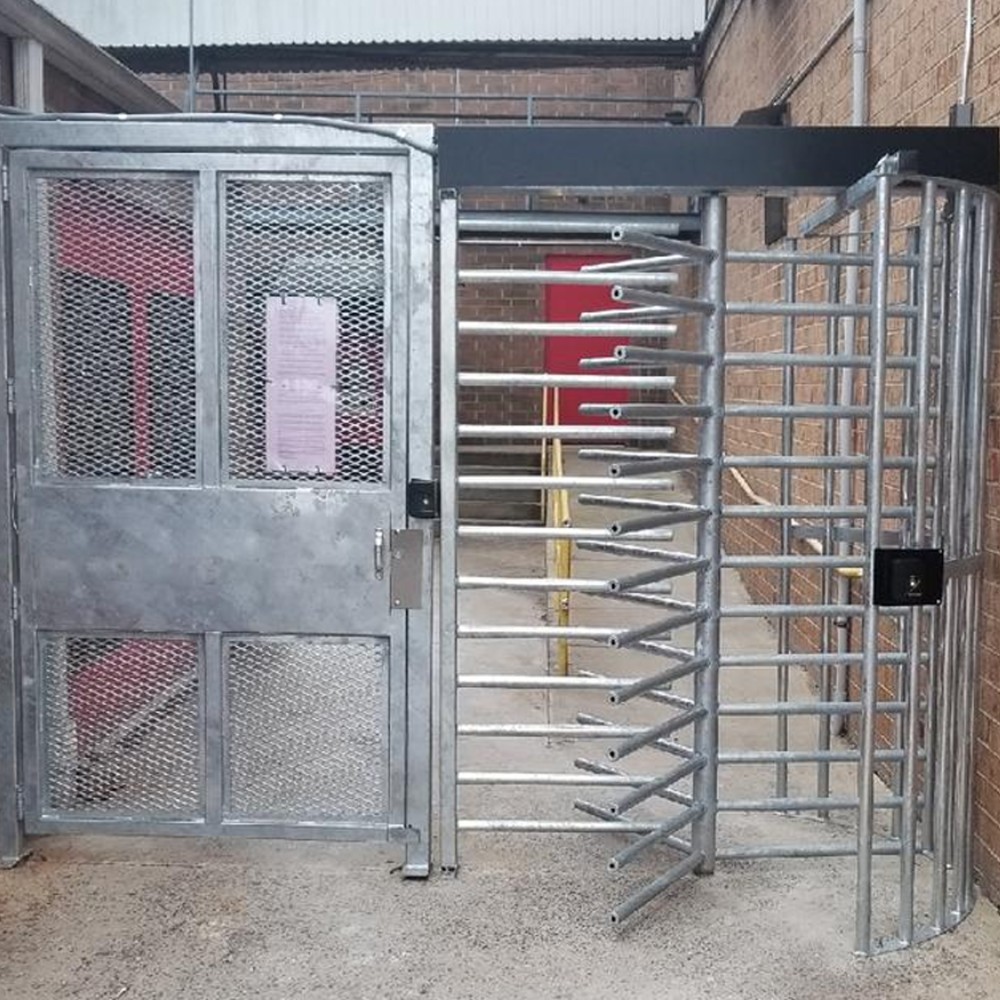

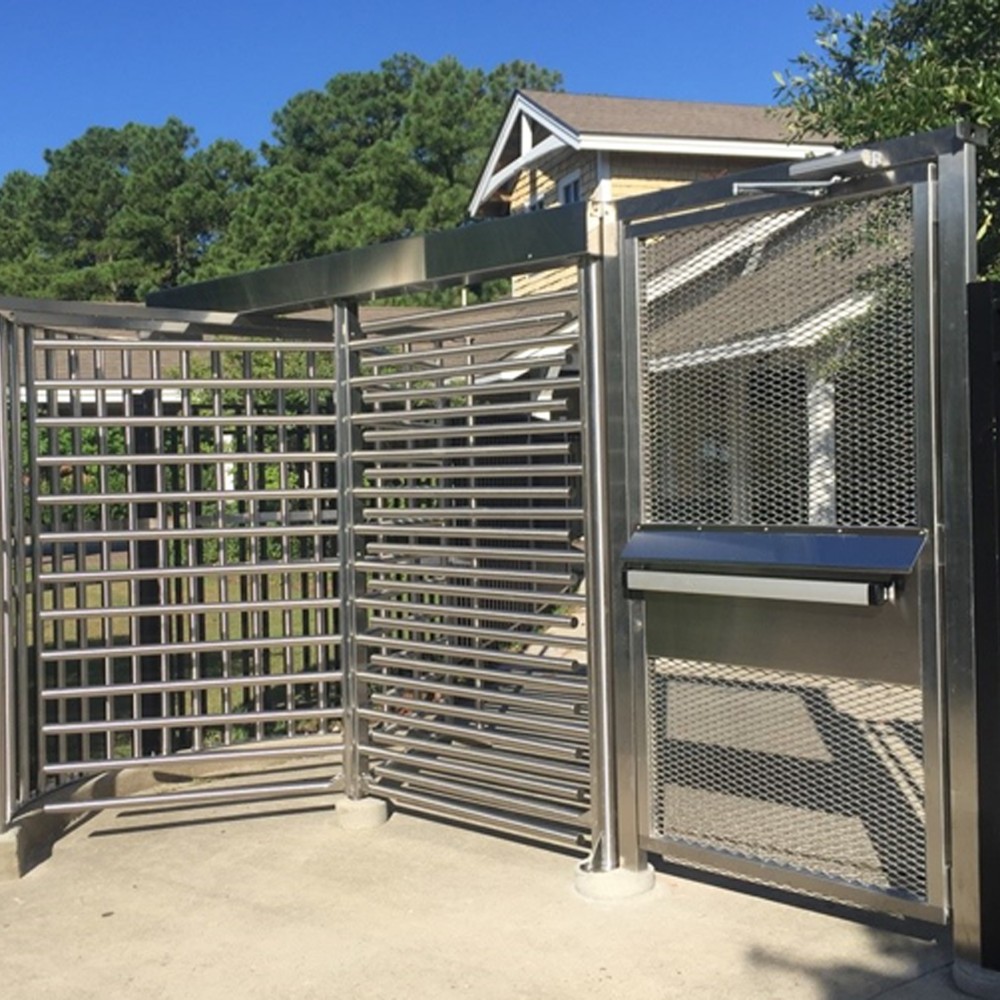

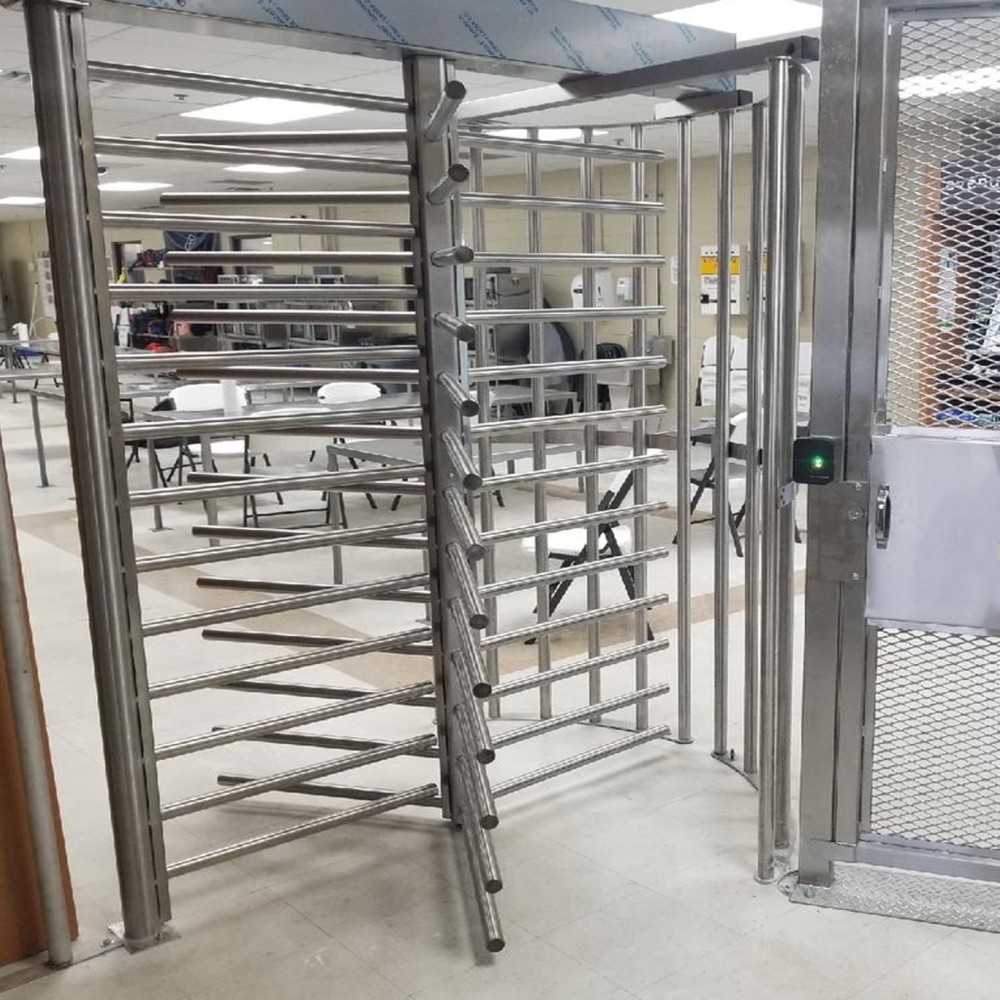

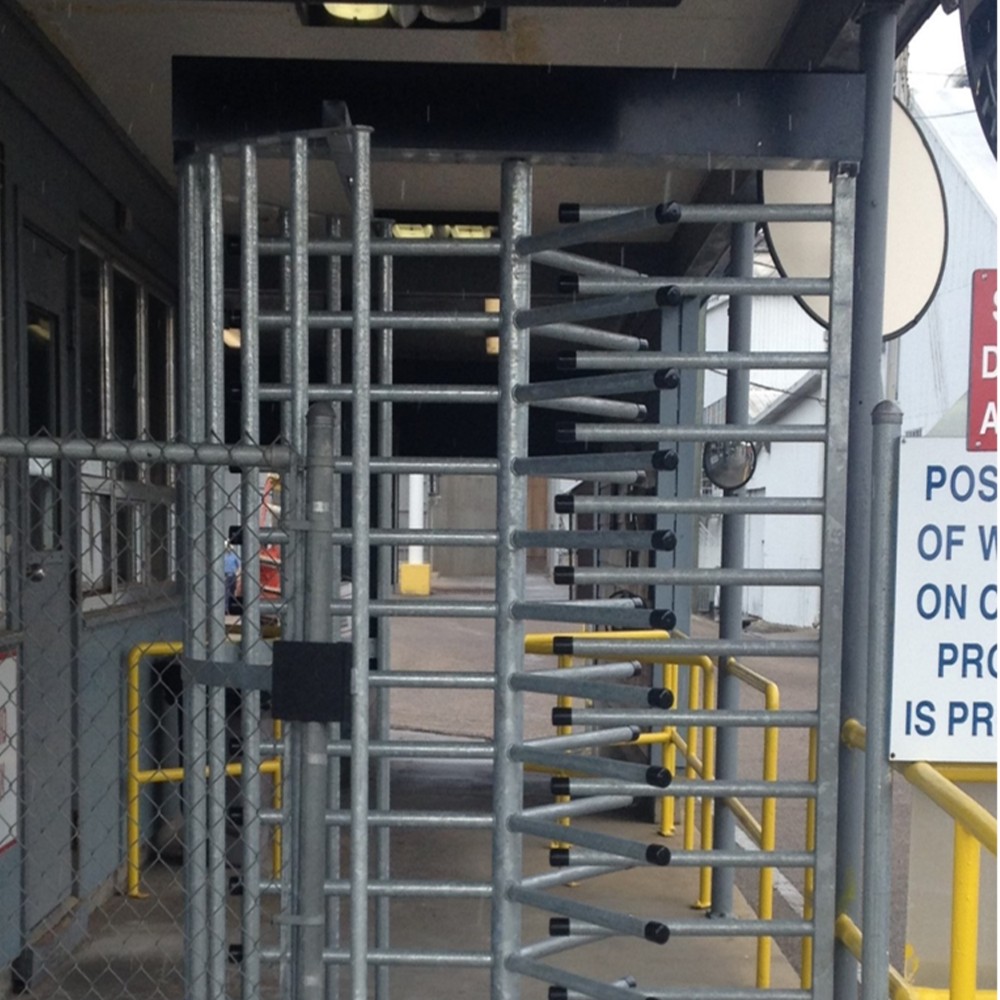

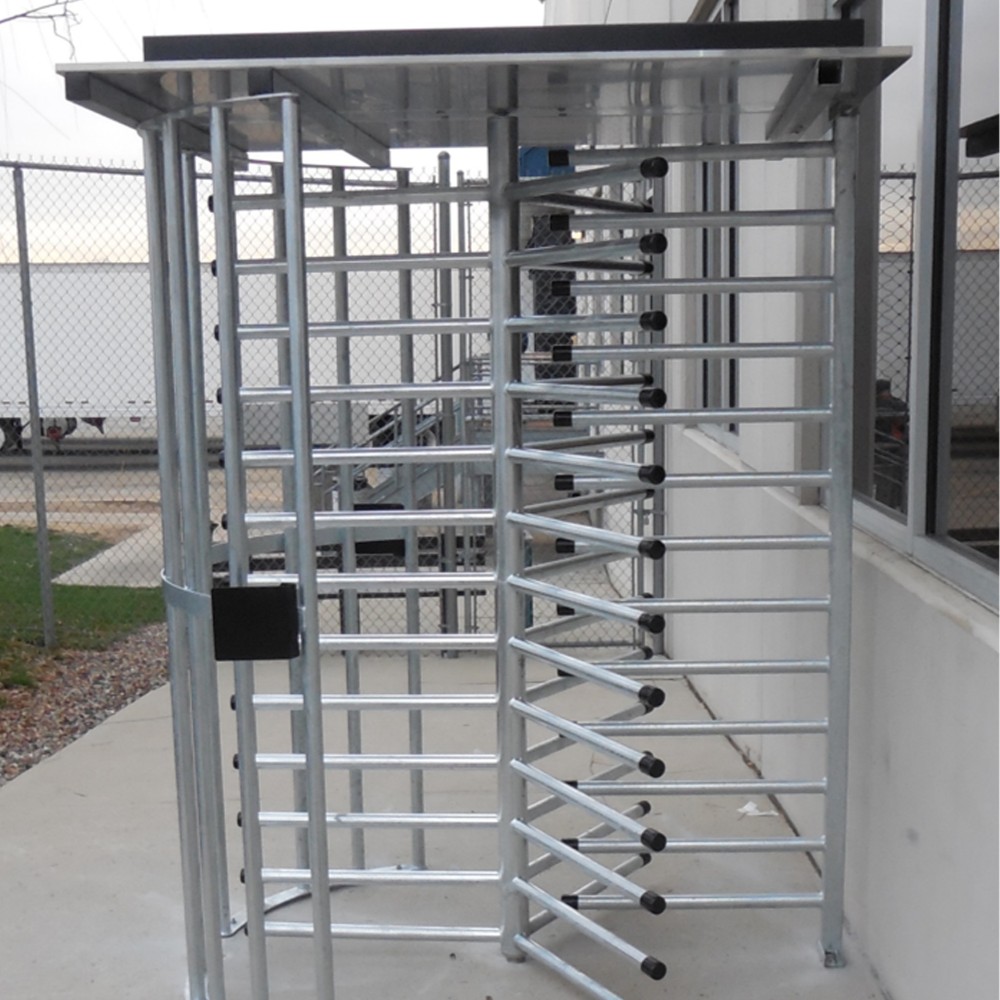

HS400 Single Turnstile Installation Gallery
