Full Height Manual Passage Gate - HS336-ADA
Details
Full Height Manual Passage Gate - HS336-ADA

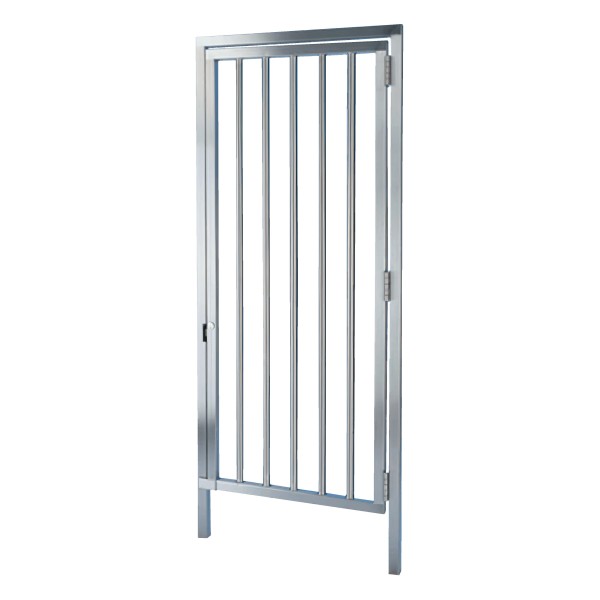

The Full Height Manual Passage Gate is the ultimate solution for ADA-compliant perimeter security. The low-voltage strike lock works both mechanically and electronically. These gates have a special hinge system that only requires 5ft. pounds of opening force. The galvanized edition is pictured.
Key Features:
- Galvanized, Powder Coated or Stainless Steel
- Exterior Height: 91"
- Interior Height: 88"
- Pedestrian Clearance: 36"
- Swing Gate: 2" x 2" 11 Gauge Box Tubing
- Frame: 2" x 3" 11 Gauge Box Tubing
- Meets ASTM standards
- Minimal Exposed Hardware
Installation Method:
- Preferred Method Is Core Drilling Of Frame Post
- Can Also Use 1/2" Concrete Anchors From Tread Plate (Requires Taking Off Core Legs From Frame)
| SKU | HS336-ADA |
|---|---|
| Pedestrian Clearance | 36" |
| Full Height of the Turnstile | 91" |
| ADA Compliant | Yes |
